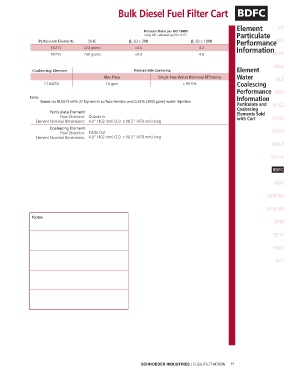

Page 71 - Schroeder - Fuel Filtration

Bulk Diesel Fuel Filter Cart BDFC

Element ICF
Filtration Ratio per ISO 16889
Using APC calibrated per ISO 11171 Particulate
Particulate Elements DHC β (c) ≥ 200 β (c) ≥ 1000 Performance BDF
x
x
KKZ1V 224 grams <4.0 4.2 Information
KKZ3V 230 grams <4.0 4.8 BDFA

Coalescing Element Pressure Side Coalescing Element BDA
Max Flow Single Pass Water Removal Efficiency Water QCF
C184Z5V 16 gpm ≥ 99.5% Coalescing
Performance BDS
Note: Information
Based on ULSD15 with 27 Dynes/cm surface tension and 0.25% (2500 ppm) water injection
Particulate and BDS2
Coalescing
Particulate Element Elements Sold
Flow Direction: Outside In with Cart BDS3
Element Nominal Dimensions: 4.0” (102 mm) O.D. x 18.5” (470 mm) long
Coalescing Element
Flow Direction: Inside Out BDS4
Element Nominal Dimensions: 4.0” (102 mm) O.D. x 18.5” (470 mm) long
LVH-F

LVH-C

BDFC
BDFC
BDC

HDP-BC

HDP-HT
Notes
EPM

EPTT

EWU

BCC

SCHROEDER INDUSTRIES | FUEL FILTRATION 71
