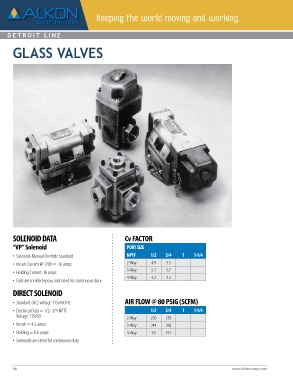

Page 66 - Alkon - Directional Control Air Valves & Accessories
P. 66
Keeping the world moving and working.
D E T R O IT L IN E
GLASS VALVES
SOLENOID DATA Cv FACTOR
“VP” Solenoid PORT SIZE
• Solenoid-Manual Override Standard NPTF 1/2 3/4 1 1-1/4
• Inrush Current @ 120V = .26 amps 2-Way 4.9 5.5
• Holding Current .16 amps 3-Way 5.2 5.7
4-Way 4.2 4.2
• Coils are molded epoxy and rated for continuous duty
DIRECT SOLENOID
• Standard (AC) voltage 115v/60 Hz AIR FLOW @ 80 PSIG (SCFM)
• Electrical Data = 1/2- 3/4 NPTF 1/2 3/4 1 1-1/4
Voltage 115/60 2-Way 230 259
• Inrush = 4.2 amps 3-Way 244 268
• Holding = 0.6 amps 4-Way 197 197
• Solenoids are rated for continuous duty
