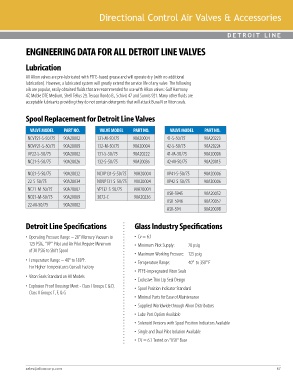

Directional Control Air Valves & Accessories

D E T R O IT L IN E

ENGINEERING DATA FOR ALL DETROIT LINE VALVES

Lubrication

All Alkon valves are pre-lubricated with PTFE-based grease and will operate dry (with no additional
lubrication). However, a lubricated system will greatly extend the service life of any valve. The following
oils are popular, easily obtained fluids that are recommended for use with Alkon valves: Gulf Harmony
47, Moble DTE Medium, Shell Tellus 29, Texaco Rondo B., Schivis 47 and Sunnis 921. Many other fluids are
acceptable lubricants providing they do not contain detergents that will attack Buna N or Viton seals.

Spool Replacement for Detroit Line Valves

VALVE MODEL PART NO. VALVE MODEL PART NO. VALVE MODEL PART NO.
NCVP21-S-50/75 90A20002 131-M-50/75 90A20004 41-S-50/75 90A20223
NOVP21-S-50/75 90A20009 132-M-50/75 90A20004 42-S-50/75 90A20224
VP22-S-50/75 90A20002 131-S-50/75 90A20222 41-M-50/75 90A20006
NC21-S-50/75 90A20026 132-S-50/75 90A20036 42-M-50/75 90A20015

NO21-S-50/75 90A20032 NCVP131-S-50/75 90A20004 VP41-S-50/75 90A20006

22-S-50/75 90A20034 NOVP131-S-50/75 90A20004 VP42-S-50/75 90A20006
NC21-M-50/75 90A20002 VP132-S-50/75 90A20004
ASK-5945 90A20052
NO21-M-50/75 90A20009 3072-C 90A20236
ASK-5946 90A20052
22-M-50/75 90A20002
ASK-594 90A20098

Detroit Line Specifications Glass Industry Specifications

• Operating Pressure Range – 28” Mercury Vacuum to • Cv = 6.1
125 PSIG, “VP” Pilot and Air Pilot Require Minimum • Minimum Pilot Supply: 20 psig
of 30 PSIG to Shift Spool
• Maximum Working Pressure: 125 psig
• Temperature Range – 40° to 180°F.
• Temperature Range: 40° to 350° F
For Higher Temperatures Consult Factory
• PTFE-impregnated Viton Seals
• Viton Seals Standard on All Models
• Exclusive Thin Lip Seal Design
• Explosion Proof Housings Meet - Class I Groups C & D,
• Spool Position Indicator Standard
Class II Groups E, F, & G
• Minimal Parts for Ease of Maintenance
• Supplied Worldwide through Alkon Distributors
• Lube Port Option Available
• Solenoid Versions with Spool Position Indicators Available

• Single and Dual Pilot Isolation Available
• CV = 6.1 Tested on “ASK” Base
