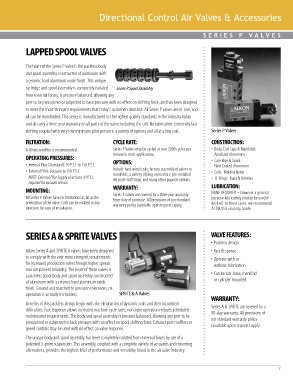

Directional Control Air Valves & Accessories



                                                                                      S E R I ES  P  V A L V ES


            LAPPED SPOOL VALVES


            The heart of the Series P valve is the packless body
            and spool assembly constructed of aluminum with
            a ceramic hard aluminum oxide finish. This unique
            cartridge and spool assembly is completely isolated
            from external forces; is pressure balanced, allowing any
            port to be pressurized or subjected to back pressure with no effect on shifting force, and has been designed
            to meet the most stringent requirements that today’s customers demand. All Series P valves are in-line, and
            all can be manifolded. This series is manufactured to the highest quality standards in the industry today
            and all carry a three year warranty on all parts of the valve, including the coil. No lubrication; extremely fast
            shifting coupled with very low minimum pilot pressure, a variety of options and all at a low cost.  Series P Valves

            FILTRATION:                         CYCLE RATE:                              CONSTRUCTION:
            A 40 micron filter is recommended.  Series P Valves may be cycled at over 2000 cycles per   •  Body, End Caps & Manifolds:
                                                minute in most applications.               Anodized Aluminum
            OPERATING PRESSURES:                                                         •  Cartridge & Spool:
            •  Internal Pilot (Standard): 10 P.S.I. to 150 P.S.I.  OPTIONS:                Hard Coated Aluminum
            •  External Pilot: Vacuum to 150 P.S.I.  Include hard wired coils; factory assembly of valves to   •  Coils:  Molded Nylon
              NOTE: External Pilot Supply of at least 10 P.S.I.    manifolds; a variety of plug connectors; pre-installed    •   O-Rings:  Buna N (Nitrile)
                                                AQ push-in fittings, and many other popular options.
             required for vacuum service.
                                                WARRANTY:                                LUBRICATION:
            MOUNTING:                                                                    NONE REQUIRED – However a general
            All Series P Valves have no limitations as far as the   Series P valves are covered by a three year warranty    purpose lubricating oil may be used if
                                                from date of purchase. All provisions of our standard
            orientation of the valve. Coils can be rotated in any   warranty policy (available upon request) apply.  desired.  In these cases, we recommend
            direction for ease of installation.                                          ASTM/ISO viscosity Grade.




            SERIES A & SPRITE VALVES                                                     VALVE FEATURES:
                                                                                         • Packless design

            Alkon Series A and SPRITE II valves have been designed                       • Fast Response
            to comply with the ever more stringent requirements                          • Operate with or
            for increased production rates through higher speeds                          without  lubrication
            and component reliability. The heart of these valves is
            a packless spool body and spool assembly constructed                         • Can be sub-base, manifold
            of aluminum with a ceramic hard aluminum oxide                                or cylinder mounted
            finish. Ground and matched to precision tolerances, its
            operation is virtually frictionless.
                                                                                         WARRANTY:
            Benefits of this packless design begin with the elimination of dynamic seals and their incumbent   Series A & SPRITE are covered by a
            difficulties. Fast response allows increased machine cycle rates; non-lube operation reduces scheduled   90-day warranty. All provisions of
            maintenance requirements. The body and spool assembly is pressure balanced, allowing any port to be   our standard warranty policy
            pressurized or subjected to back pressure with no effect on spool shifting force. Exhaust port mufflers or   (available upon request) apply.
            speed controls may be used with no effect on valve response.
            The unique body and spool assembly has been completely isolated from external forces by use of a
            patented 3-point suspension. This assembly, coupled with a complete variety of actuators and mounting
            alternatives, provides the highest level of performance and versatility found in the air valve industry.
