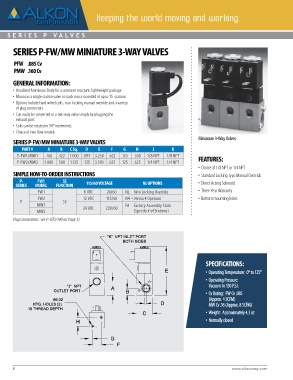

    S E R I ES  P  V A L V ES


       SERIES P-FW/MW MINIATURE 3-WAY VALVES


        PFW  .085 Cv
        PMW  .160 Cv

       GENERAL INFORMATION:
       •  Anodized Aluminum Body for a corrosion resistant, lightweight package
       •  Mount as a single station valve or stack into a manifold of up to 15  stations
       •  Options include hard wired coils,  non-locking manual override and a variety
        of plug connectors
       •  Can easily be converted to a two way valve simply by plugging the
        exhaust port
       •  Coils can be rotated in 90° increments
       •  Choice of two flow models
                                                                                    Miniature 3-Way Valves
       SERIES P-FW/MW MINIATURE 3-WAY VALVES
          PART #     A    B   C Sq.  D    E    F     G    H      J       K
        P-FW1/MW1   .766  .422  1.000 .094 3.250 .562  .125  .500  1/8 NPT  1/8 NPT
        P-FW2/MW2   1.000 .500  1.125  .125  3.593  .625  .125  .625  1/4 NPT  1/4 NPT  FEATURES:
                                                                                    • Choice of 1/8 NPT or 1/4 NPT
       SIMPLE HOW-TO-ORDER INSTRUCTIONS                                             • Standard Locking Type Manual Override
         P-      FW1       SS        115/60 VOLTAGE          NL OPTIONS             • Direct Acting Solenoid
        SERIES  MODEL   FUNCTION
                 FW1                6 VDC     24/60  NL – Non Locking Override      • Three Year Warranty
                 FW2                12 VDC   115/60  N4 – Nema 4 Operator           • Bottom mounting holes
          P                SS
                 MW1                                 FA – Factory Assembly Stack
                                    24 VDC   230/60
                MW2                                           (Specify # of Stations)
       Plug Connections: See P-070/140 on Page 11.










                                                                                       SPECIFICATIONS:
                                                                                       • Operating Temperature:  0° to 125°
                                                                                       • Operating Pressure:
                                                                                        Vacuum to 150 P.S.I.
                                                                                       • Cv Rating:  FW Cv .085
                                                                                        (Approx. 4 SCFM)
                                                                                        MW Cv .16 (Approx. 8 SCFM)
                                                                                       • Weight:  Approximately 4.3 oz
                                                                                       • Normally closed











      8                                                                                           www.alkoncorp.com
