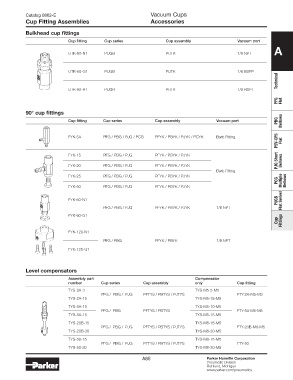

Page 69 - Parker - Vacuum products

Catalog 0802-E Vacuum Cups
Cup Fitting Assemblies Accessories

Bulkhead cup fittings
Cup fitting Cup series Cup assembly Vacuum port
A
UTK-60-N1 PUGB PUTK 1/8 NPT

UTK-60-G1 PUGB PUTK 1/8 BSPP
Technical

UTK-60-R1 PUGB PUTK 1/8 BSPT
PFG Flat

90° cup fittings
PBG
Cup fitting Cup series Cup assembly Vacuum port Bellows

P5V-CFS Flat
FYK-5A PFG / PBG / PJG / PCG PFYK / PBYK / PJYK / PCYK Barb Fitting

FYK-15 PFG / PBG / PJG PFYK / PBYK / PJYK
FYK-20 PFG / PBG / PJG PFYK / PBYK / PJYK PJG Short Bellows
Barb Fitting
FYK-25 PFG / PBG / PJG PFYK / PBYK / PJYK
PCG Multiple Bellows
FYK-50 PFG / PBG / PJG PFYK / PBYK / PJYK

PUGB Flat Swivel
FYK-60-N1
PFG / PBG / PJG PFYK / PBYK / PJYK 1/8 NPT
FYK-60-G1
Cup Fittings

FYK-120-N1
PFG / PBG PFYK / PBYK 1/8 NPT
FYK-120-G1

Level compensators
Assembly part Compensator
number Cup series Cup assembly only Cup fitting
TYS-2A-3 TYS-M5-3-M5
PFG / PBG / PJG PFTYS / PBTYS / PJTYS FTY-2A-M5-M3
TYS-2A-15 TYS-M5-15-M5
TYS-5A-10 TYS-M5-10-M5
PFG / PBG PFTYS / PBTYS FTY-5A-M5-M5
TYS-5A-15 TYS-M5-15-M5

TYS-20B-15 TYS-M8-15-M5
PFG / PBG / PJG PFTYS / PBTYS / PJTYS FTY-20B-M8-M5
TYS-20B-30 TYS-M8-30-M5
TYS-50-15 TYS-M8-15-M5
PFG / PBG / PJG PFTYS / PBTYS / PJTYS FTY-50
TYS-50-30 TYS-M8-30-M5
