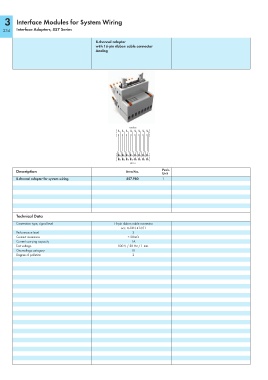

Page 236 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf

3 Interface Modules for System Wiring

234 Interface Adapters, 857 Series

8-channel adapter
with 16-pin ribbon cable connector
Analog

Interface

15 13 11 9 7 5 3 1
16 14 12 10 8 6 4 2
FLK 16
Description Item No. Pack.
Unit
8-channel adapter for system wiring 857-980 1

Technical Data

Connection type, signal level 16-pin ribbon cable connector
acc. to DIN 41651
Performance level 3
Contact resistance ≤ 20mΩ
Current carrying capacity 1A
Test voltage 500 V / 50 Hz / 1 min.
Overvoltage category III
Degree of pollution 2
