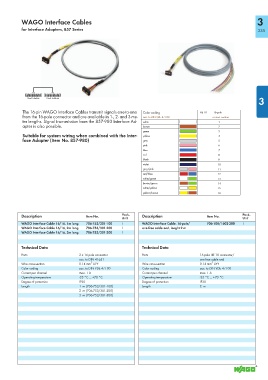

WAGO Interface Cables 3

for Interface Adapters, 857 Series 235

3
16-pol. Federleiste 16-pol. Federleiste

Color coding HE 10 16-pole
The 16-pin WAGO Interface Cables transmit signals one-to-one
acc. to DIN VDE 47100 contact number
from the 16-pole connector and are available in 1-, 2- and 3-me-
white 1
ter lengths. Signal transmission from the 857-980 Interface Ad-
brown 2
apter is also possible.
green 3
Suitable for system wiring when combined with the Inter- yellow 4
face Adapter (Item No. 857-980) grey 5
pink 6
blue 7
red 8
black 9
violet 10
grey/pink 11
red/blue 12
white/green 13
brown/green 14
white/yellow 15
yellow/brown 16

Description Item No. Pack. Description Item No. Pack.
Unit Unit
WAGO Interface Cable 16/16, 1m long 706-753/301-100 1 WAGO Interface Cable, 16-pole/ 706-100/1602-200 1
WAGO Interface Cable 16/16, 2m long 706-753/301-200 1 one free cable end, lenght 2 m
WAGO Interface Cable 16/16, 3m long 706-753/301-300 1

Technical Data Technical Data
Ports 2 x 16-pole connector Ports 16-pole HE 10 connector/
acc. to DIN 41651 one free cable end
2
2
Wire cross-section 0.14 mm LiYY Wire cross-section 0.14 mm LiYY
Color coding acc. to DIN VDE 47100 Color coding acc. to DIN VDE 47100
Current per channel max. 1 A Current per channel max. 1 A
Operating temperature -25 °C ... +70 °C Operating temperature -25 °C ... +70 °C
Degree of protection IP20 Degree of protection IP20
Length 1 m (706-753/301-100) Length 2 m
2 m (706-753/301-200)
3 m (706-753/301-300)
