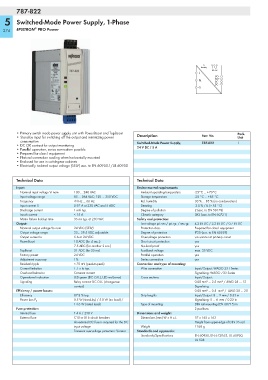

Page 276 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf

787-822

5 Switched-Mode Power Supply, 1-Phase

®
274 EPSITRON PRO Power

Stand-by
DC O.K.
L
DC+
N DC+
DC -
DC -

• Primary switch mode power supply unit with PowerBoost and TopBoost Pack.
• Stand-by input for switching off the output and minimizing power Description Item No. Unit
consumption Switched-Mode Power Supply, 787-822 1
• DC OK contact for output monitoring 24 V DC / 5 A
• Parallel operation, series connection possible
• Prepared for class I equipment
• Natural convection cooling when horizontally mounted
• Enclosed for use in switchgear cabinets
• Electrically isolated output voltage (SELV) acc. to EN 60950-1/UL 60950

Technical Data Technical Data

Input: Environmental requirements:
Nominal input voltage Vi nom 100 ... 240 VAC Ambient operating temperature -25°C ... +70°C
Input voltage range 85 ... 264 VAC; 120 ... 350 VDC Storage temperature -25 °C ... +85 °C
Frequency 44 Hz ... 66 Hz Rel. humidity 30 % ... 85 % (no condensation)
Input current Ii 0.97 A at 230 VAC and 5 ADC Derating -2.5 % / K (> 55 °C)
Discharge current 1 mA typ. Degree of pollution 2 (acc. to EN 50178)
Inrush current < 15 A Climatic category 3K3 (acc. to EN 60721)
Mains failure hold-up time 35 ms typ. at 230 VAC Safety and protection:
Output: Test voltage pri.-sec./ pri.-gr. / sec.-gr. 4.2 kV DC / 2.2 kV DC / 0.7 kV DC
Nominal output voltage Vo nom 24 VDC (SELV) Protection class Prepared for class I equipment
Output voltage range 22... 29.5 VDC adjustable Degree of protection IP20 (acc. to EN 60529)
Output current Io 5 A at 24 VDC Overvoltage protection via varistor at primary circuit
PowerBoost 10 ADC (for 4 sec.); Short circuit protection yes
7.5 ADC (for another 2 sec.) No-load proof yes
TopBoost 21 ADC (for 25 ms) Feedback voltage max. 35 VDC
Factory preset 24 VDC Parallel operation yes
Adjustment accuracy 1% Series connection yes
Residual ripple < 70 mV (peak-to-peak) Connection and type of mounting:
Current limitation 1.1 x Io typ. Wire connection Input/Output: WAGO 231 Series
Overload behavior Constant current Signalising: WAGO 733 Series
Operational indication LED green (DC O.K.), LED red (error) Cross sections Input/Output:
Signaling Relay contact DC O.K. (changeover 0.08 mm² ... 2.5 mm² / AWG 28 ... 12
contact) Signalising:
Efficiency / power losses: 0.08 mm² ... 0.5 mm² / AWG 28 ... 20
Efficiency 87.8 % typ. Strip lengths Input/Output: 8 ... 9 mm / 0.33 in
0.5 W (stand-by) / 5.0 W (no load) / Signalising: 5 ... 6 mm / 0.22 in
Power loss P V
14.6 W (rated load) Type of mounting DIN-rail mounting (EN 60715) in
Fuse protection: 2 positions
Internal fuse T 4 A / 250 V Dimensions and weight:
External fuse C10 or B16 circuit breakers Dimensions (mm) W x H x L 57 x 163 x 163
An external DC fuse is required for the DC Height from upper-edge of DIN 35 rail
input voltage Weight 1268 g
Transient overvoltage protection: Varistor Standards and approvals:
Standards/Specifications EN 60950, EN 61204-3, UL 60950,
UL 508
