dpw Series

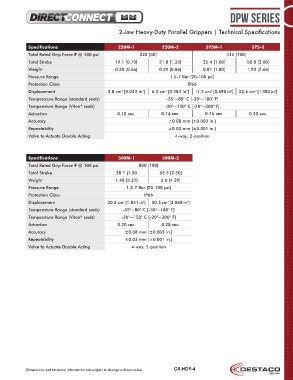

2-Jaw Heavy-Duty Parallel Grippers | Technical Specifications

Specifications 250M-1 250M-2 375M-1 375-2
Total Rated Grip Force F @ 100 psi 222 [50] 445 [100]
Total Stroke 19.1 [0.75] 31.8 [1.25] 25.4 [1.00] 50.8 [2.00]
Weight 0.30 [0.66] 0.39 [0.86] 0.81 [1.80] 1.20 [2.66]
Pressure Range 1.5-7 Bar [20-100 psi]
Protection Class IP66
Displacement 3.8 cm [0.023 in ] 6.3 cm [0.383 in ] 11.3 cm [0.690 in ] 22.6 cm [1.382 in ]
3
3
3
3
3
3
3
3
Temperature Range (standard seals) -35°~80° C [-30°~180° F]
Temperature Range (Viton seals) -30°~150° C [-20°~300° F]
®
Actuation 0.12 sec. 0.14 sec. 0.16 sec. 0.20 sec.
Accuracy ±0.08 mm [±0.003 in.]
Repeatability ±0.03 mm [±0.001 in.]
Valve to Actuate Double Acting 4-way, 2-position
Specifications 500M-1 500M-2
Total Rated Grip Force F @ 100 psi 800 [180]
Total Stroke 38.1 [1.50 63.5 [2.50]
Weight 1.48 [3.27] 2.0 [4.39]
Pressure Range 1.5-7 Bar [20-100 psi]
Protection Class IP66
Displacement 30.2 cm [1.841 in ] 50.3 cm [3.068 in ]
3
3
3
3
Temperature Range (standard seals) -35°~80° C [-30°~180° F]
Temperature Range (Viton seals) -30°~150° C [-20°~300° F]
®
Actuation 0.20 sec. 0.28 sec.
Accuracy ±0.08 mm [±0.003 in.]
Repeatability ±0.03 mm [±0.001 in.]
Valve to Actuate Double Acting 4-way, 2-position

Dimensions and technical information are subject to change without notice GR-HDP-4
