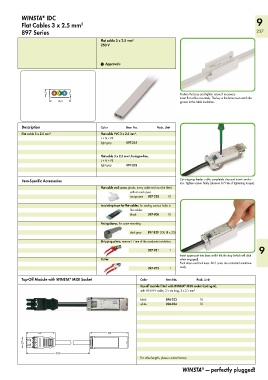

WINSTA IDC 9
®
Flat Cables 3 x 2.5 mm 2
897 Series 237
Flat cable 3 x 2.5 mm²
250 V

1 Approvals

( 6,5 ) Position the base and tighten screw, if necessary.
Insert flat cable accurately. The key in the base must match the
<___ 16,9 ___> groove in the cable insulation.

Description Color Item No. Pack. Unit
Flat cable 3 x 2.5 mm² Flat cable PVC 3 x 2.5 mm²,
L + N + PE
light gray 897-231

Flat cable 3 x 2.5 mm², halogen-free,
L + N + PE
light gray 897-232

Item-Specific Accessories Cut outgoing feeder cable, completely strip and insert conduc-
tors. Tighten screws firmly (observe 0.7 Nm of tightening torque).
Flat cable end cover, plastic. Every cable end must be fitted
with an end cover.
transparent 897-230 10
Insulating tape for flat cables, for sealing contact holes in
flat cables.
black 897-900 10
Fixing clamp, for screw mounting

dark gray 897-839 200 (8 x 25)
Stripping pliers, remove 17 mm of the conductor insulation.
9
897-931 1
Insert upper part into base until it hits the stop (which will click
Cutter when engaged).
Push down and lock lever. All 3 cores are contacted simultane-
897-972 1 ously.
Tap-Off Module with WINSTA MIDI Socket Color Item No. Pack. Unit
®
Tap-off module fitted with WINSTA MIDI socket (coding A),
®
with H35VV-F cable, 3.5 cm long, 3 x 2.5 mm²
black 896-233 10
white 896-234 10

<_______69________> <___________ 90___________>
<_27_> N 3 L

<_____________________ 350 _____________________>
For other lengths, please contact factory.

WINSTA — perfectly plugged!
®
