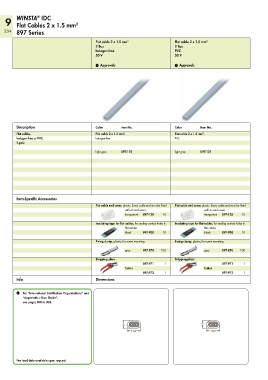

Page 236 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf

®
9 WINSTA IDC 2
Flat Cables 2 x 1.5 mm
234 897 Series

Flat cable 2 x 1.5 mm 2 Flat cable 2 x 1.5 mm 2
2 Bus 2 Bus
halogen-free PVC
50 V 50 V

1 Approvals 1 Approvals

Description Color Item No. Color Item No.
Flat cables, Flat cable 2 x 1.5 mm , Flat cable 2 x 1.5 mm ,
2
2
halogen-free or PVC, halogen-free PVC
2-pole
light gray 897-122 light gray 897-121

Item-Specific Accessories
Flat cable end cover, plastic. Every cable end must be fitted Flat cable end cover, plastic. Every cable end must be fitted
with an end cover. with an end cover.
transparent 897-120 10 transparent 897-120 10
Insulating tape for flat cables, for sealing contact holes in Insulating tape for flat cables, for sealing contact holes in
flat cables. flat cables.
black 897-900 10 black 897-900 10
Fixing clamp, plastic, for screw mounting Fixing clamp, plastic, for screw mounting

gray 897-878 100 gray 897-878 100
Stripping pliers Stripping pliers
897-971 1 897-971 1
Cutter Cutter
897-972 1 897-972 1
Info Dimensions

1 For “International Certification Organizations” and
“Approvals — User Guide”,
see pages 300 to 303.

( 6,1 ) ( 6,1 )
< 10,9 > < 10,9 >

Fire load data available upon request.
