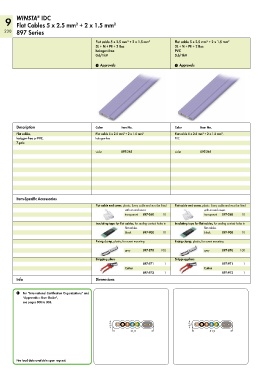

Page 232 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf

®
9 WINSTA IDC 2 2
Flat Cables 5 x 2.5 mm + 2 x 1.5 mm
230 897 Series

Flat cable 5 x 2.5 mm² + 2 x 1.5 mm 2 Flat cable 5 x 2.5 mm² + 2 x 1.5 mm 2
3L + N + PE + 2 Bus 3L + N + PE + 2 Bus
halogen-free PVC
0.6/1kV 0.6/1kV

1 Approvals 1 Approvals

Description Color Item No. Color Item No.
Flat cables, Flat cable 5 x 2.5 mm + 2 x 1.5 mm 2 Flat cable 5 x 2.5 mm + 2 x 1.5 mm ,
2
2
2
halogen-free or PVC, halogen-free PVC
7-pole
violet 897-262 violet 897-261

Item-Specific Accessories
Flat cable end cover, plastic. Every cable end must be fitted Flat cable end cover, plastic. Every cable end must be fitted
with an end cover. with an end cover.
transparent 897-260 10 transparent 897-260 10
Insulating tape for flat cables, for sealing contact holes in Insulating tape for flat cables, for sealing contact holes in
flat cables. flat cables.
black 897-900 10 black 897-900 10
Fixing clamp, plastic, for screw mounting Fixing clamp, plastic, for screw mounting

gray 897-878 100 gray 897-878 100
Stripping pliers Stripping pliers
897-971 1 897-971 1
Cutter Cutter
897-972 1 897-972 1
Info Dimensions

1 For “International Certification Organizations” and
“Approvals — User Guide”,
see pages 300 to 303.

( 6,1 ) ( 6,1 )
<___________ 31,9 ___________> <___________ 31,9 ___________>

Fire load data available upon request.
