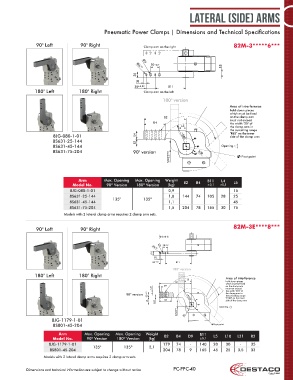

Page 16 - Destaco - 82M-3E Series

lateral (Side) arms

Pneumatic Power Clamps | Dimensions and Technical Specifications

90° Left 90° Right Clamp arm on the right 82M-3*****6***

Ø9
10

30±0,2
Ø6 H7
20
( )9
30 ±0,02 B11
180° Left 180° Right Clamp arm on the left
180° version
Area of interference
hold-down pieces
which must be fixed
B2 on the clamp arm
B4 must not exceed
the width "20" of
L5 the clamp arm in
the swivelling range
"R80" on the inner
8JG-080-1-01 L4 ~R80 side of the clamp arm
8S631-25-144 L5
8S631-45-144 Opening
8S631-75-204 90° version R28
SW22 H8 Pivot point

Arm Max. Opening Max. Opening Weight B11 L4
Model No. 90º Version 180º Version (kg) B2 B4 ±0,1 ±0,1 L5
8JG-080-1-01 0,9 15
8S631-25-144 135° 135º 1,0 144 74 105 28 25
8S631-45-144 1,1 45
8S631-75-204 1,5 204 78 165 30 75
Models with 2 lateral clamp arms requires 2 clamp arm sets.

90° Left 90° Right 82M-3E****8***

30 ±0,2
Ø9
Ø6 H7
L10
(9)
30 ±0,02 B11
180° version
180° Left 180° Right
L5 Area of interference
B2 hold-down pieces
which must be fixed
L21 D9 on the clamp arm
must not exceed
the width "L10" of
35 ±0,1 ~R108 the swivelling range
90° version the clamp arm in
"R108" on the inner
L5 L21 B4 side of the clamp arm
SW28 H8 Opening
8JG-1179-1-01 R2
8S801-45-204 Pivot point
Arm Max. Opening Max. Opening Weight B11
Model No. 90º Version 180º Version (kg) B2 B4 D9 ±0,1 L5 L10 L21 R2
8JG-1179-1-01 135° 135º 2,1 179 74 - 140 20 30 - 35
8S801-45-204 204 78 9 165 45 25 3,5 33
Models with 2 lateral clamp arms requires 2 clamp arm sets.

Dimensions and technical information are subject to change without notice PC-PPC-40
