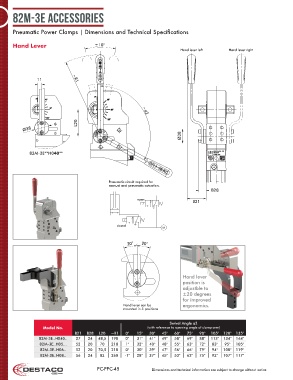

Page 21 - Destaco - 82M-3E Series

82M-3E accessories Hand lever left Hand lever right

Pneumatic Power Clamps | Dimensions and Technical Specifications

Hand Lever
11 ~R1 ±10°
Hand lever left Hand lever right

11 ~R1 ~a2
L20 Hand lever left Hand lever right
Ø38
Ø38

11 ~a2
~R1
82M-3E**H040**
L20
Ø38
Ø38

82M-3E**H040** B28 ~a2
L20
Ø38 B21
20° 20° Ø38

Pneumatic circuit required for
manual and pneumatic actuation.
82M-3E**H040** B28

open
B21
20° 20°
Pneumatic circuit required for
manual and pneumatic actuation.
closed B28
Hand lever can be open
mounted in 3 positions B21
20° 20°
Pneumatic circuit required for
manual and pneumatic actuation.
closed

Hand lever can be open
mounted in 3 positions
Hand lever
position is
adjustble to
±20 degrees
closed
for improved
Hand lever can be ergonomics.
mounted in 3 positions

Swivel Angle a2
Model No. (with reference to opening angle of clamp arm)
B21 B28 L20 ~R1 0° 15° 30° 45° 60° 75° 90° 105° 120° 135°
82M-3E..H040.. 27 24 48,5 190 0° 31° 41° 49° 58° 69° 88° 113° 134° 144°
82M-3E..H05... 52 20 70 218 1° 32° 40° 48° 55° 63° 72° 83° 95° 105°
82M-3E..H06.. 52 20 70,5 218 0° 30° 39° 47° 56° 66° 79° 94° 108° 119°
82M-3E..H08.. 56 24 82 268 -1° 28° 37° 45° 53° 63° 75° 92° 107° 117°

PC-PPC-45 Dimensions and technical information are subject to change without notice
