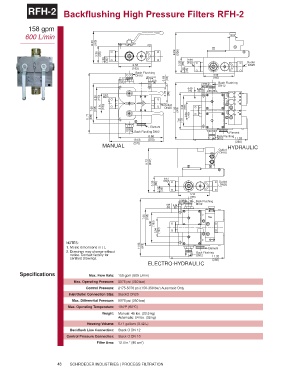

RFH-2 Backflushing High Pressure Filters RFH-2

158 gpm
600 L/min
6.30 (160)

3.35 (85) 9.29 (236)
1.38 (35) DN25 Outlet
Inlet
6.50 3.35 (85) DN25
(165)
Back Flushing 1.38 (35)
DN12 6.50
2.17 Ø 0.51 (13) 0.69 (18) (165)
(55) 0.35 2.17 (55) Back Flushing
(9)
Ø 0.51 (13) DN12
0.69 0.35
(18)
(9)
Inlet 3.76 (96)
6.30 (160) DN25
DN25
7.68 (195) 3.94 (100) Outlet 11.93 (303) 6.30 (160)
11.77 (299) 7.68 (195) 3.94 (100)
Element
Back Flushing DN12 Element
8.86 Back Flushing
10.63 (225) DN12 11.28
(286)
MANUAL (270) HYDRAULIC
Outlet
DN10
9.72 (247)

Inlet
DN25 Outlet
3.35 (85) DN25
1.38 (35)
6.50
(165)
2.17 (55) Back Flushing
Ø 0.51 (13)
0.69 0.35 DN12
(18) (9)
7.68 (195) Filter
6.30 (160)
3.94 (100)

NOTES:
1. Metric di men sions in ( ). 11.93 (303) Element
2. Drawings may change without Back Flushing
notice. Contact factory for DN12 11.32
certified drawings. (288)
ELECTRO-HYDRAULIC
Specifications Max. Flow Rate: 158 gpm (600 L/min)

Max. Operating Pressure: 5076 psi (350 bar)
Control Pressure: 2175-5076 psi (150-350 bar) Automatic Only
Inlet/Outlet Connection Size: SteckO DN25
Max. Differential Pressure: 5076 psi (350 bar)
Max. Operating Temperature: 194°F (90°C)
Weight: Manual: 45 lbs. (20.5 kg)
Automatic: 84 lbs. (38 kg)
Housing Volume: 0.11 gallons (0.42 L)
Backflush Line Connection: Steck O DN 12
Control Pressure Connection: Steck O DN 10
Filter Area: 12.4 in. (80 cm ) 2
2
