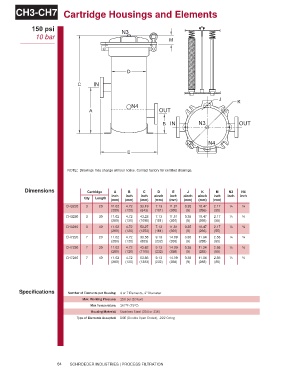

CH3-CH7 Cartridge Housings and Elements

150 psi
10 bar

NOTE: Drawings may change without notice. Contact factory for certified drawings.

Dimensions Cartridge A B C D E J K M N3 N4
inch inch inch øinch inch øinch øinch inch inch inch
Qty Length
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
CH3220 3 20 11.02 4.72 33.19 7.13 11.81 0.35 10.47 2.17 ¼ ¾
(280) (120) (843) (181) (300) (9) (266) (55)
CH3230 3 30 11.02 4.72 43.23 7.13 11.81 0.35 10.47 2.17 ¼ ¾
(280) (120) (1098) (181) (300) (9) (266) (55)
CH3240 3 40 11.02 4.72 53.27 7.13 11.81 0.35 10.47 2.17 ¼ ¾
(280) (120) (1353) (181) (300) (9) (266) (55)
CH7220 7 20 11.02 4.72 33.58 9.13 14.09 0.35 11.34 2.56 ¼ ¾
(280) (120) (853) (232) (358) (9) (288) (65)
CH7230 7 30 11.02 4.72 43.62 9.13 14.09 0.35 11.34 2.56 ¼ ¾
(280) (120) (1108) (232) (358) (9) (288) (65)
CH7240 7 40 11.02 4.72 53.66 9.13 14.09 0.35 11.34 2.56 ¼ ¾
(280) (120) (1363) (232) (358) (9) (288) (65)

Specifications Number of Elements per Housing: 3 or 7 Elements, 2" Diameter
Max. Working Pressure: 150 psi (10 bar)
Max Temperature: 167ºF (75ºC)
Housing Material: Stainless Steel (304 or 316)
Type of Elements Accepted: DOE (Double Open Ended), -222 O-ring

84 SCHROEDER INDUSTRIES | PROCESS FILTRATION
