PDE2600PNUK
Parker Pneumatic Rodless Magnetic Cylinders - P1Z

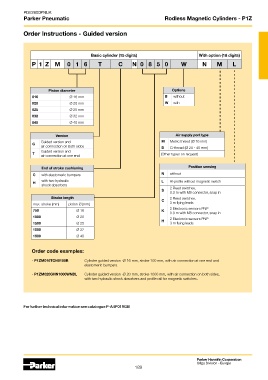

Order Instructions - Guided version

Basic cylinder (15 digits) With option (18 digits)
P 1 Z M 0 1 6 T C N 0 8 5 0 W N M L

Piston diameter Options
016 Ø 16 mm B without
020 Ø 20 mm W with
025 Ø 25 mm
032 Ø 32 mm
040 Ø 40 mm

Version Air supply port type
Guided version and M Metric thread (Ø 16 mm)
G
air connection on both sides B G-thread (Ø 20 - 40 mm)
Guided version and
T (Other types on request)
air connection at one end
End of stroke cushioning Position sensing
C with elastomeric bumpers N without
with two hydraulic L Al-profile without magnetic switch
H
shock absorbers
S 2 Reed switches,
0.3 m with M8 connector, snap in
Stroke length 2 Reed switches,
C
max. stroke [mm] piston Ø [mm] 3 m flying leads
750 Ø 16 K 2 Electronic sensors PNP
0.3 m with M8 connector, snap in
1000 Ø 20
H 2 Electronic sensors PNP
1500 Ø 25 3 m flying leads
1500 Ø 32
1500 Ø 40

Order code examples:

- P1ZM016TCN0100B Cylinder guided version -Ø 16 mm, stroke 100 mm, with air connection at one end and
elastomeric bumpers.
- P1ZM020GHN1000WNBL Cylinder guided version -Ø 20 mm, stroke 1000 mm, with air connection on both sides,
with two hydraulic shock absorbers and profile rail for magnetic switches.

For further technical information see catalogue P-A4P019GB

Parker Hannifin Corporation
Origa Division - Europe
189
