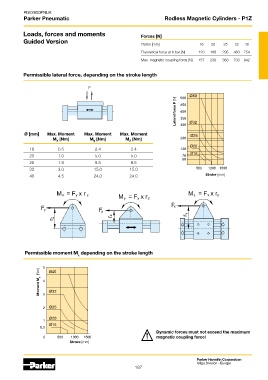

Parker Pneumatic Rodless Magnetic Cylinders - P1Z
Loads, forces and moments Forces [N]
Guided Version Piston [mm] 16 20 25 32 40
Theoretical force at 6 bar [N] 120 188 295 483 754
Max. magnetic coupling force [N] 157 236 383 703 942
Permissible lateral force, depending on the stroke length
Ø40
500
Lateral force F [N] 450 Ø32
400
350
Ø [mm] Max. Moment Max. Moment Max. Moment 300 Ø25
Ø25
M [Nm] M [Nm] M [Nm] 200
z
x
y
Ø20
Ø20
16 0.5 2.4 2.4 120
Ø16
20 1.0 5.0 5.0 70 Ø16
50
25 1.8 9.5 9.5
32 3.0 15.0 15.0 500 1000 1500
40 4.5 24.0 24.0 Stroke [mm]
Permissible moment M depending on the stroke length
x
5 Ø40
Moment M x [Nm] 4 3 Ø32
2 Ø25
Ø20
1
Ø16
0,5
Dynamic forces must not exceed the maximum
0 500 1000 1500 magnetic coupling force!
Stroke [mm]
