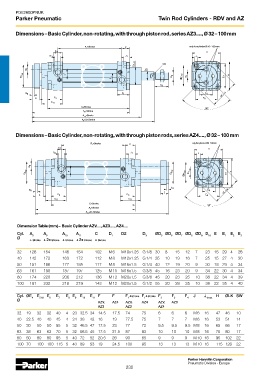

Page 230 - Parker - Parker Pneumatic

PDE2600PNUK
Parker Pneumatic Twin Rod Cylinders - RDV and AZ

Dimensions – Basic Cylinder, non-rotating, with through piston rod, series AZ3...., Ø 32 – 100 mm

F 1 +Stroke only for cylinder Ø 50 – 100 mm

C+Stroke
A 5 +Stroke
A 10 +Stroke
A 9 +2x Stroke

Dimensions – Basic Cylinder, non-rotating, with through piston rods, series AZ4...., Ø 32 – 100 mm

F 1 +Stroke only for cylinder Ø 50 – 100 mm

C+Stroke
A 5 +Stroke
A 11 +2x Stroke

Dimension Table (mm) – Basic Cylinder AZV...., AZ3...., AZ4....
Cyl. A 5 A 9 A 10 A 11 C D 1 D2 D 3 ØD 5 ØD 6 ØD 7 ØD 8 ØD 9 D 10 E E 1 E 2 E 3
Ø
+ Stroke + 2x Stroke + Stroke + 2x Stroke + Stroke

32 128 154 146 154 102 M 6 M10x1.25 G 1/8 30 8 15 12 7 23 15 29 4 26
40 142 172 163 172 112 M 8 M12x1.25 G 1/4 35 10 19 16 7 25 15 27 4 30
50 151 188 177 185 117 M 8 M16x1.5 G 1/4 40 12 19 20 9 30 18 29 4 34
63 161 198 187 197 125 M 10 M16x1.5 G 3/8 45 16 23 20 9 34 22 30 4 34
80 174 220 206 212 136 M 12 M20x1.5 G 3/8 45 20 23 25 10 38 22 34 4 39
100 181 232 218 219 143 M 12 M20x1.5 G 1/2 55 20 28 25 10 38 22 35 4 40

Cyl. ØE 4 E 5 h9 E 6 E 7 E 8 E 9 E 10 E 11 F F F +Stroke F +Stroke F 3 F 3 F 4 J J 1max H ØLK SW
1
1
Ø
AZV, AZ4 AZV, AZ4 AZV, AZ3
AZ3 AZ3 AZ4
32 19 32 32 40 4 20 32.5 34 14.5 17.5 74 75 6 6 6 M 6 16 47 46 10
40 22.5 40 40 45 4 24 38 42 16 19 77.5 75 7 7 7 M 6 16 53 54 14
50 30 50 50 55 5 32 46.5 47 17.5 23 77 72 9.5 9.5 9.5 M 8 16 65 66 17
63 38 63 63 70 5 32 56.5 45 17.5 21.5 87 83 10 10 10 M 8 16 75 80 17
80 50 80 80 95 5 40 72 52 20.5 26 90 85 9 9 9 M 10 16 95 102 22
100 70 100 100 115 5 40 89 53 19 24.5 100 95 13 13 13 M 10 16 115 126 22

Parker Hannifin Corporation
Pneumatic Division - Europe
230
