PDE2600PNUK
Parker Pneumatic Vane Air Motors - P1V-B

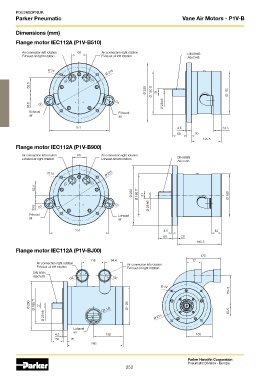

Dimensions (mm)

Flange motor IEC112A (P1V-B510)

Air connection left rotation 60 Air connection right rotation DIN 6885
Exhaust air right rotation Exhaust air left rotation A8x7x45

Ø 215
Ø 14
G1 G1
62.5
Ø 250 Ø 180 f7 31 Ø 180

33.6 G1 G1 Ø 28 k6
Exhaust Exhaust
air air

251 4.5 33.5
60 20
125.5
Flange motor IEC112A (P1V-B900)
Air connection left rotation 60 Air connection right rotation
Exhaust air right rotation Exhaust air left rotation DIN 6885
A8x7x45

Ø 14 Ø 215
G1 G1
62.5
Ø 250 Ø 180 f7 31 Ø 180

33.6 G1 G1 Ø 28 k6
Exhaust Exhaust
air air

251 4.5 42
60 20
185.5
Flange motor IEC112A (P1V-BJ00)
175
115 94.4 77
Air connection right rotation Air connection left rotation
Exhaust air left rotation Exhaust air right rotation
DIN 6885
A8x7x45 G2 G2

Ø 14
154.5

Ø 250 Ø 180 f7 31 G2.1/2 Ø 196

Ø 28 k6 Ø 215 53.5

Exhaust
air
4.5 152 130
60 20
286

Parker Hannifin Corporation
Pneumatic Division - Europe
