PDE2600PNUK
Parker Pneumatic Large Air Motors - P1V-A

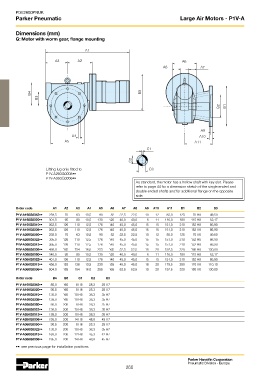

Dimensions (mm)
G: Motor with worm gear, flange mounting

A1

A3 A2 A6
A8 A7

B4 B5
B3

B2 B1

A9
A4 A10
A5 A11

C1

C2
Lifting lug only fitted to C3
P1V-A260G0008••
P1V-A360G0006••
As standard, the motor has a hollow shaft with key slot. Please
refer to page 44 for a dimension sketch of the single ended and
double ended shafts and for additional flange on the opposite
side.

Order code A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 B1 B2 B3
P1V-A160G0043•• 259,5 70 63 10,5 90 82 22,5 22,5 10 12 85,0 125 70 H8 49,50
P1V-A160G0020•• 301,5 95 80 10,5 130 120 40,0 40,0 8 11 116,0 180 115 H8 62,17
P1V-A160G0010•• 362,5 126 110 12,5 176 140 45,0 45,0 15 15 151,0 210 152 H8 86,90
P1V-A160G0008•• 362,5 126 110 12,5 176 140 45,0 45,0 15 15 151,0 210 152 H8 86,90
P1V-A260G0050•• 292,0 70 63 10,5 90 82 22,5 22,5 10 12 85,0 125 70 H8 49,50
P1V-A260G0022•• 395,0 126 110 12,5 176 140 45,0 45,0 15 15 151,0 210 152 H8 86,90
P1V-A260G0013•• 395,0 126 110 12,5 176 140 45,0 45,0 15 15 151,0 210 152 H8 86,90
P1V-A260G0008•• 498,0 185 154 16,0 255 165 52,5 52,5 18 20 197,5 320 180 H8 130,00
P1V-A360G0050•• 340,0 95 80 10,5 130 120 40,0 40,0 8 11 116,0 180 115 H8 62,17
P1V-A360G0022•• 401,0 126 110 12,5 176 140 45,0 45,0 15 15 151,0 210 152 H8 86,90
P1V-A360G0013•• 456,0 153 138 13,5 230 155 45,0 45,0 18 20 179,5 280 170 H8 110,10
P1V-A360G0006•• 504,0 185 154 16,0 255 165 52,5 52,5 18 20 197,5 320 180 H8 130,00
Order code B4 B5 C1 C2 C3
P1V-A160G0043•• 80,0 160 8 H8 28,3 25 H7
P1V-A160G0020•• 98,5 160 8 H8 28,3 25 H7
P1V-A160G0010•• 138,0 160 10 H8 38,3 35 H7
P1V-A160G0008•• 138,0 160 10 H8 38,3 35 H7
P1V-A260G0050•• 80,0 200 8 H8 28,3 25 H7
P1V-A260G0022•• 138,0 200 10 H8 38,3 35 H7
P1V-A260G0013•• 138,0 200 10 H8 38,3 35 H7
P1V-A260G0008•• 195,0 200 14 H8 48,8 45 H7
P1V-A360G0050•• 98,5 200 8 H8 28,3 25 H7
P1V-A360G0022•• 138,0 200 10 H8 38,3 35 H7
P1V-A360G0013•• 169,0 200 12 H8 45,3 42 H7
P1V-A360G0006•• 195,0 200 14 H8 48,8 45 H7
••: see previous page for installation positions
