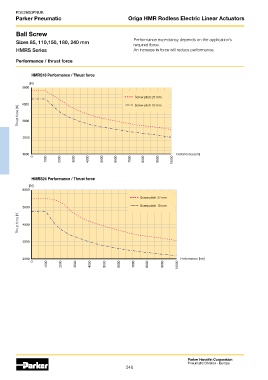

P. 348
PDE2600PNUK
Parker Pneumatic Origa HMR Rodless Electric Linear Actuators
Ball Screw
Performance expectancy depends on the application’s
Sizes 85, 110,150, 180, 240 mm required force.
HMRS Series An increase in force will reduce performance.
Performance / thrust force
HMRS18 Performance / Thrust force
Screw pitch 25 mm
Screw pitch 10 mm
Thrust force [N]
Performance [km]
HMRS24 Performance / Thrust force
Screw pitch 32 mm
Screw pitch 10 mm
Thrust force [N]
Performance [km]
Parker Hannifin Corporation
Pneumatic Division - Europe
348
