P. 431
PDE2600PNUK
Parker Pneumatic

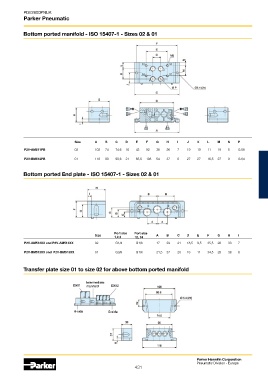

Bottom ported manifold - ISO 15407-1 - Sizes 02 & 01
Size A B C D E F G H I J K L M N P
P2V-AM511PB 02 102 74 74,6 16 43 92 38 26 7 19 19 11 19 5 G1/8
P2V-BM512PB 01 118 90 90,6 21 56,5 108 54 37 8 27 27 16,5 27 8 G1/4
Bottom ported End plate - ISO 15407-1 - Sizes 02 & 01
Port size Port size
Size 1,2,3 12, 14 A B C D E F G H I
P2V-AM512XX and P2V-AM512XX 02 G1/4 G1/8 17 29 21 18,5 9,5 35,5 28 33 7
P2V-BM513XX and P2V-BM513XX 01 G3/8 G1/8 21,5 37 20 16 11 34,5 28 38 8
Transfer plate size 01 to size 02 for above bottom ported manifold
Intermediate
DX01 manifold DX02
H-side G-side
Parker Hannifin Corporation
Pneumatic Division - Europe
431
