PDE2600PNUK
Parker Pneumatic

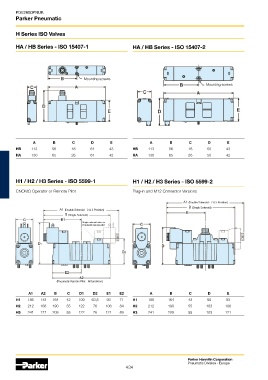

H Series ISO Valves

HA / HB Series - ISO 15407-1 HA / HB Series - ISO 15407-2

Mounting screws
Mounting screws

A B C D E A B C D E
HB 113 56 18 61 43 HB 113 56 18 50 43
HA 130 65 26 61 42 HA 130 65 26 50 42

H1 / H2 / H3 Series - ISO 5599-1 H1 / H2 / H3 Series - ISO 5599-2

CNOMO Operator or Remote Pilot Plug-in and M12 Connector Versions

A1 (Double Solenoid - 2 & 3 Position)
B (Single Solenoid)
A1 (Double Solenoid - 2 & 3 Position)
B (Single Solenoid)
Single solenoid valve or
Pneumatic remote pilot

(Pneumatic Remote Pilot - All functions)

A1 A2 B C D1 D2 E1 E2 A B C D E
H1 186 142 164 42 109 63,5 93 71 H1 186 164 42 90 93
H2 212 168 190 55 122 76 106 84 H2 212 190 55 103 106
H3 241 177 209 55 122 76 121 89 H3 241 209 55 103 121

Parker Hannifin Corporation
Pneumatic Division - Europe
434
