PDE2600PNUK
Parker Pneumatic Precision Pressure Regulators

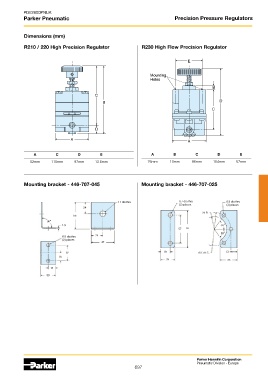

Dimensions (mm)

R210 / 220 High Precision Regulator R230 High Flow Precision Regulator

A C D E A B C D E
52mm 110mm 97mm 13.5mm 76mm 10mm 86mm 154mm 57mm

Mounting bracket - 446-707-045 Mounting bracket - 446-707-025

11 dia thru 8.7 dia thru 6.9 dia thru
(2) places (3) places
24
25 R
55
90 O
1.9 55 O
57 76
55 O
6.8 dia thru 24
(2) places
47

32 19 76 D.B.C. 13
16
29 35
15
30

Parker Hannifin Corporation
Pneumatic Division - Europe
697
