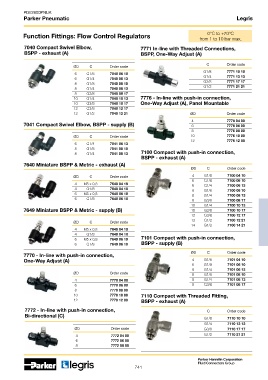

Page 741 - Parker - Parker Pneumatic

PDE2600PNUK
Parker Pneumatic Legris

0°C to +70°C
Function Fittings: Flow Control Regulators from 1 to 10 bar max.

7040 Compact Swivel Elbow, 7771 In-line with Threaded Connections,
BSPP - exhaust (A) BSPP, One-Way Adjust (A)

C Order code
ØD C Order code
G1/8 7771 10 10
6 G1/8 7040 06 10
6 G1/4 7040 06 13 G1/4 7771 13 13
8 G1/8 7040 08 10 G3/8 7771 17 17
8 G1/4 7040 08 13 G1/2 7771 21 21
8 G3/8 7040 08 17
10 G1/4 7040 10 13 7776 - In-line with push-in connection,
10 G3/8 7040 10 17 One-Way Adjust (A), Panel Mountable
12 G3/8 7040 12 17
12 G1/2 7040 12 21 ØD Order code
4 7776 04 00
7041 Compact Swivel Elbow, BSPP - supply (B) 6 7776 06 00
8 7776 08 00
ØD C Order code 10 7776 10 00
12 7776 12 00
6 G1/4 7041 06 13
8 G1/8 7041 08 10
8 G1/4 7041 08 13 7100 Compact with push-in connection,
BSPP - exhaust (A)
7640 Miniature BSPP & Metric - exhaust (A)
ØD C Order code
ØD C Order code 4 G1/8 7100 04 10
6 G1/8 7100 06 10
4 M5 x 0,8 7640 04 19 6 G1/4 7100 06 13
4 G1/8 7640 04 10 8 G1/8 7100 08 10
6 M5 x 0,8 7640 06 19 8 G1/4 7100 08 13
6 G1/8 7640 06 10 8 G3/8 7100 08 17
10 G1/4 7100 10 13
7649 Miniature BSPP & Metric - supply (B) 10 G3/8 7100 10 17
12 G3/8 7100 12 17
ØD C Order code 12 G1/2 7100 12 21
14 G1/2 7100 14 21
4 M5 x 0,8 7649 04 19
4 G1/8 7649 04 10
6 M5 x 0,8 7649 06 19 7101 Compact with push-in connection,
6 G1/8 7649 06 10 BSPP - supply (B)
ØD C Order code
7770 - In-line with push-in connection,
One-Way Adjust (A) 4 G1/8 7101 04 10
6 G1/8 7101 06 10
6 G1/4 7101 06 13
ØD Order code 8 G1/8 7101 08 10
4 7770 04 00 8 G1/4 7101 08 13
6 7770 06 00 8 G3/8 7101 08 17
8 7770 08 00
10 7770 10 00 7110 Compact with Threaded Fitting,
12 7770 12 00 BSPP - exhaust (A)

7772 - In-line with push-in connection, C Order code
Bi-directional (C)
G1/8 7110 10 10
G1/4 7110 13 13
ØD Order code G3/8 7110 17 17
4 7772 04 00 G1/2 7110 21 21
6 7772 06 00
8 7772 08 00

Parker Hannifin Corporation
Fluid Connectors Group
741
