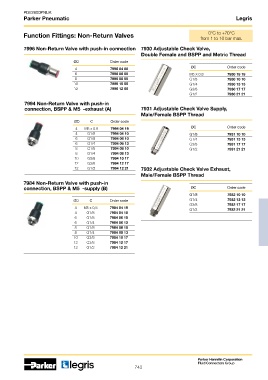

Page 743 - Parker - Parker Pneumatic

PDE2600PNUK
Parker Pneumatic Legris

Function Fittings: Non-Return Valves 0°C to +70°C
from 1 to 10 bar max.

7996 Non-Return Valve with push-in connection 7930 Adjustable Check Valve,
Double Female and BSPP and Metric Thread
ØD Order code
4 7996 04 00 ØC Order code
6 7996 06 00 M5 X 0.8 7930 19 19
8 7996 08 00 G1/8 7930 10 10
10 7996 10 00 G1/4 7930 13 13
12 7996 12 00 G3/8 7930 17 17
G1/2 7930 21 21
7994 Non-Return Valve with push-in
connection, BSPP & M5 -exhaust (A) 7931 Adjustable Check Valve Supply,
Male/Female BSPP Thread
ØD C Order code
4 M5 x 0.8 7994 04 19 ØC Order code
4 G1/8 7994 04 10 G1/8 7931 10 10
6 G1/8 7994 06 10 G1/4 7931 13 13
6 G1/4 7994 06 13 G3/8 7931 17 17
8 G1/8 7994 08 10 G1/2 7931 21 21
8 G1/4 7994 08 13
10 G3/8 7994 10 17
12 G3/8 7994 12 17
12 G1/2 7994 12 21 7932 Adjustable Check Valve Exhaust,
Male/Female BSPP Thread
7984 Non-Return Valve with push-in
connection, BSPP & M5 -supply (B) ØC Order code
G1/8 7932 10 10
ØD C Order code G1/4 7932 13 13
G3/8 7932 17 17
4 M5 x 0,8 7984 04 19 G1/2 7932 21 21
4 G1/8 7984 04 10
6 G1/8 7984 06 10
6 G1/4 7984 06 13
8 G1/8 7984 08 10
8 G1/4 7984 08 13
10 G3/8 7984 10 17
12 G3/8 7984 12 17
12 G1/2 7984 12 21

Parker Hannifin Corporation
Fluid Connectors Group
743
