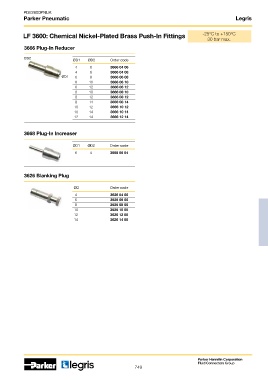

Page 749 - Parker - Parker Pneumatic

PDE2600PNUK
Parker Pneumatic Legris

LF 3600: Chemical Nickel-Plated Brass Push-In Fittings -25°C to +150°C
30 bar max.
3666 Plug-In Reducer

ØD2
ØD1 ØD2 Order code
4 6 3666 04 06
4 8 3666 04 08
ØD1 6 8 3666 06 08
6 10 3666 06 10
6 12 3666 06 12
8 10 3666 08 10
8 12 3666 08 12
8 14 3666 08 14
10 12 3666 10 12
10 14 3666 10 14
12 14 3666 12 14

3668 Plug-In Increaser

ØD1 ØD2 Order code
6 4 3668 06 04

3626 Blanking Plug

ØD Order code
4 3626 04 00
6 3626 06 00
8 3626 08 00
10 3626 10 00
12 3626 12 00
14 3626 14 00

Parker Hannifin Corporation
Fluid Connectors Group
749
