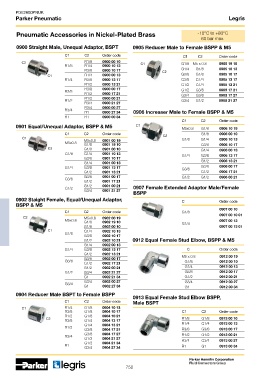

Page 750 - Parker - Parker Pneumatic

PDE2600PNUK
Parker Pneumatic Legris

Pneumatic Accessories in Nickel-Plated Brass -10°C to +80°C
60 bar max.
0900 Straight Male, Unequal Adaptor, BSPT 0905 Reducer Male to Female BSPP & M5

C1 C2 Order code C1 C2 Order code
C2 R1/8 0900 00 10 C1 G1/8 M5 x 0.8 0905 19 10
R1/8 R1/4 0900 10 13
R3/8 0900 10 17 C2 G1/4 G1/8 0905 10 13
C1 R1/4 0900 00 13 G3/8 G1/8 0905 10 17
R1/4 R3/8 0900 13 17 G3/8 G1/4 0905 13 17
R1/2 0900 13 21 G1/2 G1/4 0905 13 21
R3/8 0900 00 17 G1/2 G3/8 0905 17 21
R3/8
R1/2 0900 17 21 G3/4 G3/8 0905 17 27
R1/2 0900 00 21
R1/2 G3/4 G1/2 0905 21 27
R3/4 0900 21 27
R3/4 0900 00 27
R3/4
R1 0900 27 34 0906 Increaser Male to Female BSPP & M5
R1 R1 0900 00 34
C1 C2 Order code
0901 Equal/Unequal Adaptor, BSPP & M5 C1 M5x0.8 G1/8 0906 10 19
C1 C2 Order code C2 G1/8 0906 00 10
C1 M5x0.8 0901 00 19 G1/8 G1/4 0906 10 13
M5x0.8 G1/8 0901 19 10 G3/8 0906 10 17
C2 G1/8 0901 00 10 G1/4 0906 00 13
G1/8 G1/4 0901 10 13 G1/4 G3/8 0906 13 17
G3/8 0901 10 17 G1/2 0906 13 21
G1/4 0901 00 13
G1/4 G3/8 0901 13 17 G3/8 G3/8 0906 00 17
G1/2 0901 13 21 G1/2 0906 17 21
G3/8 0901 00 17 G1/2 G1/2 0906 00 21
G3/8
G1/2 0901 17 21
G1/2 0901 00 21
G1/2 0907 Female Extended Adaptor Male/Female
G3/4 0901 21 27
BSPP
0902 Staight Female, Equal/Unequal Adaptor, C Order code
BSPP & M5
0907 00 10
C1 C2 Order code G1/8
C2 M5x0.8 0902 00 19 0907 00 10 01
M5x0.8 G1/8 0902 19 10 G1/4 0907 00 13
G1/8 0902 00 10 0907 00 13 01
C1 G1/4 0902 10 13
G1/8
G3/8 0902 10 17
G1/2 0902 10 21 0912 Equal Female Stud Elbow, BSPP & M5
G1/4 0902 00 13
G1/4 G3/8 0902 13 17 C Order code
G1/2 0902 13 21 M5 x 0.8 0912 00 19
G3/8 0902 00 17
G3/8 G1/8 0912 00 10
G1/2 0902 17 21
G1/2 0902 00 21 G1/4 0912 00 13
G1/2 G3/4 0902 21 27 G3/8 0912 00 17
G1 0902 21 34 G1/2 0912 00 21
G3/4 0902 00 27 G3/4 0912 00 27
G3/4
G1 0902 27 34 G1 0912 00 34
0904 Reducer Male BSPT to Female BSPP
0913 Equal Female Stud Elbow BSPP,
C1 C2 Order code Male BSPT
C1 R1/4 G1/8 0904 10 13
R3/8 G1/8 0904 10 17 C1 C2 Order code
R1/2 G1/8 0904 10 21
C2 R3/8 G1/4 0904 13 17 R1/8 G1/8 0913 00 10
G1/4 0904 13 21 R1/4 G1/4 0913 00 13
R1/2
G3/8 0904 17 21 R3/8 G3/8 0913 00 17
G3/8 0904 17 27 R1/2 G1/2 0913 00 21
R3/4
G1/2 0904 21 27 R3/4 G3/4 0913 00 27
G1/2 0904 21 34
R1 R1 G1 0913 00 34
G3/4 0904 27 34
Parker Hannifin Corporation
Fluid Connectors Group
750
