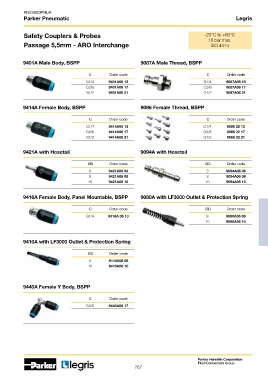

Page 767 - Parker - Parker Pneumatic

PDE2600PNUK
Parker Pneumatic Legris

Safety Couplers & Probes -20°C to +60°C
16 bar max.
Passage 5,5mm - ARO Interchange ISO 4414

9401A Male Body, BSPP 9087A Male Thread, BSPP

C Order code C Order code
G1/4 9401A06 13 G1/4 9087A06 13
G3/8 9401A06 17 G3/8 9087A06 17
G1/2 9401A06 21 G1/2 9087A06 21

9414A Female Body, BSPP 9086 Female Thread, BSPP

C Order code C Order code
G1/4 9414A06 13 G1/4 9086 22 13
G3/8 9414A06 17 G3/8 9086 22 17
G1/2 9414A06 21 G1/2 9086 22 21

9421A with Hosetail 9094A with Hosetail

ØD Order code ØD Order code
6 9421A06 06 6 9094A06 06
8 9421A06 08 8 9094A06 08
10 9421A06 10 10 9094A06 10

9416A Female Body, Panel Mountable, BSPP 9080A with LF3000 Outlet & Protection Spring

C Order code ØD Order code
G1/4 9416A 06 13 8 9080A06 08
10 9080A06 10

9410A with LF3000 Outlet & Protection Spring

ØD Order code
8 9410A06 08
10 9410A06 10

9440A Female Y Body, BSPP

C Order code
G3/8 9440A06 17

Parker Hannifin Corporation
Fluid Connectors Group
767
