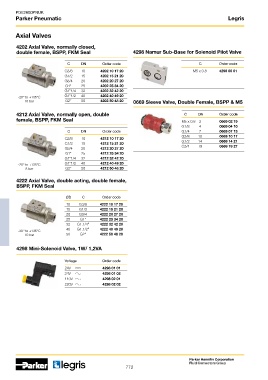

Page 772 - Parker - Parker Pneumatic

PDE2600PNUK
Parker Pneumatic Legris

Axial Valves

4202 Axial Valve, normally closed,
double female, BSPP, FKM Seal 4298 Namur Sub-Base for Solenoid Pilot Valve

C DN Order code C Order code
G3/8 10 4202 10 17 20 M5 x 0.8 4298 00 01
G1/2 15 4202 15 21 20
G3/4 20 4202 20 27 20
G1” 25 4202 25 34 20
G1”1/4 32 4202 32 42 20
-20° to +135°C G1”1/2 40 4202 40 49 20
10 bar G2” 50 4202 50 48 20 0669 Sleeve Valve, Double Female, BSPP & M5

4212 Axial Valve, normally open, double C DN Order code
female, BSPP, FKM Seal M5 x 0.8 2 0669 02 19
G1/8 4 0669 04 10
C DN Order code G1/4 7 0669 07 13
G3/8 10 0669 10 17
G3/8 10 4212 10 17 20
G1/2 15 4212 15 21 20 G1/2 14 0669 14 21
G3/4 20 4212 20 27 20 G3/4 19 0669 19 27
G1” 25 4212 25 34 20
G1”1/4 32 4212 32 42 20
-20° to +135°C G1”1/2 40 4212 40 49 20
8 bar G2” 50 4212 50 48 20

4222 Axial Valve, double acting, double female,
BSPP, FKM Seal

ØD C Order code
10 G3/8 4222 10 17 20
15 G1/2 4222 15 21 20
20 G3/4 4222 20 27 20
25 G1” 4222 25 34 20
32 G1.1/4” 4222 32 42 20
40 G1.1/2” 4222 40 49 20
-20° to +135°C
10 bar 50 G2” 4222 50 48 20

4298 Mini-Solenoid Valve, 1W/ 1,2VA

Voltage Order code
24V 4298 01 01
24V 4298 01 02
110V 4298 02 01
220V 4298 02 02

Parker Hannifin Corporation
Fluid Connectors Group
772
