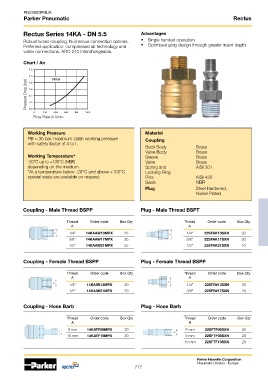

PDE2600PNUK
Parker Pneumatic Rectus

Rectus Series 14KA - DN 5.5 Advantages

Robust brass coupling. Numerous connection options. • Single handed operation
Preferred application: compressed air technology and • Optimised plug design through greater insert depth
water connections. ARO 210 Interchangeable.

Chart / Air

Pressure Drop (bar)

Flow Rate in l/min

Working Pressure Material
PB = 35 bar, maximum static working pressure Coupling
with safety factor of 4 to1.
Back Body Brass
Valve Body Brass
Working Temperature* Sleeve Brass
-20°C up to +100°C (NBR) Valve Brass
depending on the medium. Spring and AISI 301
*At a temperature below -20°C and above +100°C Locking Ring
special seals are available on request. Pins AISI 420
Seals NBR
Plug Steel Hardened,
Nickel Plated

Coupling - Male Thread BSPP Plug - Male Thread BSPT

Thread Order code Box Qty Thread Order code Box Qty
A A
1/4” 14KAAW13MPX 20 1/4” 22SFAK13SXN 20
3/8” 14KAAW17MPX 20 3/8” 22SFAK17SXN 20
1/2” 14KAAW21MPX 20 1/2” 22SFAK21SXN 10

Coupling - Female Thread BSPP Plug - Female Thread BSPP

Thread Order code Box Qty Thread Order code Box Qty
A A
1/4” 14KAIW13MPX 20 1/4” 22SFIW13SXN 20
1/2” 14KAIW21MPX 20 3/8” 22SFIW17SXN 20

Coupling - Hose Barb Plug - Hose Barb

Thread Order code Box Qty Thread Order code Box Qty
A A
8 mm 14KATF08MPX 20 6 mm 22SFTF06SXN 20
10 mm 14KATF10MPX 20 8 mm 22SFTF08SXN 20
10 mm 22SFTF10SXN 20

Parker Hannifin Corporation
Pneumatic Division - Europe
777
