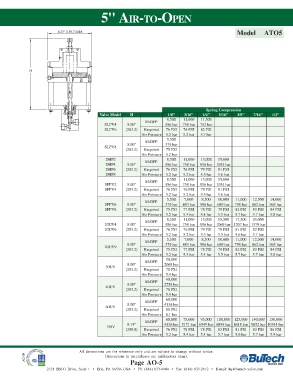

5" AIR-TO-OPEN
6.25" (158.7) DIA
Model ATO5

H

Spring Compression
Valve Model H 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2"
8,500 11,000 11,500
MAWP
SLPV4 8.00" 586 bar 758 bar 793 bar
SLPV6 (203.2) Required 76 PSI 76 PSI 82 PSI
Air Pressure 5.2 bar 5.2 bar 5.7 bar
5,500
MAWP
8.00" 379 bar
SLPV8
(203.2) Required 75 PSI
Air Pressure 5.2 bar
DHP2 8,500 11,000 13,000 15,000
MAWP
DHP4 8.00" 586 bar 758 bar 896 bar 1034 bar
DHP6 (203.2) Required 76 PSI 76 PSI 79 PSI 81 PSI
DHP8 Air Pressure 5.2 bar 5.2 bar 5.5 bar 5.6 bar
8,500 11,000 13,000 15,000
MAWP
SFPV2 8.00" 586 bar 758 bar 896 bar 1034 bar
SFPV4 (203.2) Required 76 PSI 76 PSI 79 PSI 81 PSI
Air Pressure 5.2 bar 5.2 bar 5.5 bar 5.6 bar
5,500 7,000 8,500 10,000 11,000 12,500 14,000
MAWP
SFPV6 8.00" 379 bar 483 bar 586 bar 689 bar 758 bar 862 bar 965 bar
SFPV8 (203.2) Required 75 PSI 77 PSI 78 PSI 79 PSI 82 PSI 83 PSI 84 PSI
Air Pressure 5.2 bar 5.3 bar 5.4 bar 5.5 bar 5.7 bar 5.7 bar 5.8 bar
8,500 11,000 13,000 15,500 17,500 20,000
MAWP
20UV4 8.00" 586 bar 758 bar 896 bar 1069 bar 1207 bar 1379 bar
20UV6 (203.2) Required 76 PSI 76 PSI 79 PSI 79 PSI 81 PSI 82 PSI
Air Pressure 5.2 bar 5.2 bar 5.5 bar 5.5 bar 5.6 bar 5.7 bar
5,500 7,000 8,500 10,000 11,000 12,500 14,000
MAWP
8.00" 379 bar 483 bar 586 bar 689 bar 758 bar 862 bar 965 bar
20UV9
(203.2) Required 75 PSI 77 PSI 78 PSI 79 PSI 82 PSI 83 PSI 84 PSI
Air Pressure 5.2 bar 5.3 bar 5.4 bar 5.5 bar 5.7 bar 5.7 bar 5.8 bar
30,000
MAWP
8.00" 2068 bar
30UV
(203.2) Required 78 PSI
Air Pressure 5.4 bar
40,000
MAWP
8.00" 2758 bar
40UV
(203.2) Required 78 PSI
Air Pressure 5.4 bar
60,000
MAWP
8.00" 4136 bar
60UV
(203.2) Required 88 PSI
Air Pressure 6.1 bar
60,000 75,000 95,000 100,000 125,000 140,000 150,000
MAWP
8.19" 4136 bar 5171 bar 6549 bar 6894 bar 8618 bar 9652 bar 10341 bar
150V
(208.0) Required 76 PSI 78 PSI 78 PSI 83 PSI 81 PSI 83 PSI 86 PSI
Air Pressure 5.2 bar 5.4 bar 5.4 bar 5.7 bar 5.6 bar 5.7 bar 5.9 bar
All dimensions are for reference only and are subject to change without notice.
AO-09 Dimensions in parentheses are millimeters (mm).
