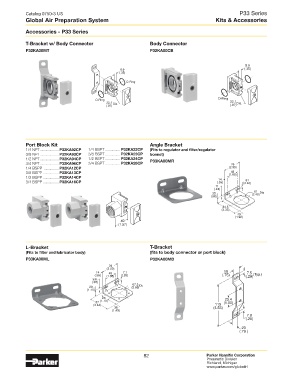

Page 82 - Parker- Parker global air preparation system

Catalog 0750-3 US P33 Series
Global Air Preparation System Kits & Accessories

Accessories - P33 Series

T-Bracket w/ Body Connector Body Connector
P32KA00MT P32KA00CB

8.9
8.9 (.35)
(.35)
O-Ring

O-Ring O-Ring
22.1 Dia. 22.1 Dia.
(.87) (.87)

Port Block Kit Angle Bracket
1/4 NPT .................. P32KA92CP 1/4 BSPT .............. P32KA22CP (Fits to regulator and filter/regulator
3/8 NPT .................. P32KA93CP 3/8 BSPT .............. P32KA23CP bonnet)
1/2 NPT .................. P32KA94CP 1/2 BSPT .............. P32KA24CP P33KA00MR
3/4 NPT .................. P32KA96CP 3/4 BSPT .............. P32KA26CP 76
1/4 BSPP .............. P32KA12CP (2.99)
48
3/8 BSPP ............... P32KA13CP (1.89)
1/2 BSPP ............... P32KA14CP 14
61
3/4 BSPP ............... P32KA16CP (.55) (2.40)
11
(.43)
61
25 (2.40) Dia
(98)
84.5
(3.33)
49
(1.92)
40
(1.57)

L-Bracket T-Bracket
(Fits to filter and lubricator body) (fits to body connector or port block)
P33KA00ML P32KA00MB
76
(3.00)
14 48 7.1 19 7.5
(.56) (1.88) (.28) (.75) (.29) (Typ.)
9.6
(.38)
67.5
28 (2.66) Dia
(1.10)
28 25.4
87 (1.10) (1.00)
(3.44) 115
38 (4.53)
(1.49)
7.0
(.28)
20
(.79 )
