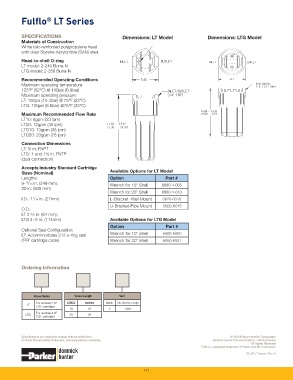

Fulfl o LT Series

SPECIFICATIONS Dimensions: LT Model Dimensions: LTG Model
Materials of Construction
White talc-reinforced polypropylene head
with clear Styrene-Acrylonitrile (SAN) shell.
Head-to-shell O-ring
LT model: 2-240 Buna-N
LTG model: 2-358 Buna-N
Recommended Operating Conditions
Maximum operating temperature:
125°F (52°C) @ 100psi (6.9bar)
Maximum operating pressure:
LT: 150psi (10.3bar) @ 75°F (22°C)
LTG: 125psi (8.6bar) @75°F (22°C)
Maximum Recommended Flow Rate
LT10: 6gpm (23 lpm)
LT20: 12gpm (45 lpm)
LTG10: 10gpm (38 lpm)
LTG20: 20gpm (76 lpm)
Connection Dimensions
LT: ¾ in. FNPT
LTG: 1 and 1½ in. FNTP
(dual connection)
Accepts Industry Standard Cartridge
Sizes (Nominal) Available Options for LT Model
Lengths: Option Part #
13
9- /16 in. (249 mm); Wrench for 10" Shell 6880-1-005
20 in. (508 mm)
Wrench for 20" Shell 6880-1-010
1
I.D.: 1 /16 in. (27mm) L-Bracket -Wall Mount 0820-6010
U-Bracket-Pipe Mount 0820-6015
O.D.:
LT 2-½ in. (64 mm);
LTG 4-½ in. (114mm) Available Options for LTG Model
Option Part #
Optional Seal Confi guration:
Wrench for 10" Shell 6880-6000
LT: Accommodates 213 o-ring seal
(˝PR˝ cartridge code) Wrench for 20" Shell 6880-6001

Ordering Information

Vessel Series Vessel Length Vent
For nominal 2 ½" CODE Inches Blank No Vent (LT only)
LT
O.D. cartridges
10 10 V Vent
For nominal 4 ½"
LTG 20 20
O.D. cartridges

Specifi cations are subject to change without notifi cation. © 2010 Parker-Hannifi n Corporation
For User Responsibility Statement, see www.parker.com/safety domnick hunter Process Filtration - North America
All Rights Reserved
Fulfl o is a registered trademark of Parker-Hannifi n Corporation
DS_IP_LT Vessel Rev. A
