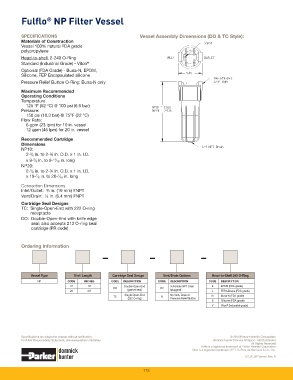

Fulfl o NP Filter Vessel

SPECIFICATIONS Vessel Assembly Dimensions (DO & TC Style):
Materials of Construction
Vessel 100% natural FDA grade
polypropylene
Head-to-shell: 2-240 O-Ring
Standard (Industrial Grade) - Viton ®
Optional (FDA Grade) - Buna-N, EPDM,
Silicone, FEP Encapsulated silicone
Pressure Relief Button O-Ring: Buna-N only
Maximum Recommended
Operating Conditions
Temperature:
125 °F (52 °C) @ 100 psi (6.9 bar)
Pressure:
O
150 psi (10.3 bar) @ 75 F (22 °C)
Flow Rate:
6 gpm (23 lpm) for 10 in. vessel
12 gpm (45 lpm) for 20 in. vessel
Recommended Cartridge
Dimensions
NP10:
3
2- ⁄ 8 in. to 2-¾ in. O.D. x 1 in. I.D.
5
13
x 9- ⁄ 8 in. to 9- ⁄ 16 in. long
NP20:
3
2- ⁄ 8 in. to 2-¾ in. O.D. x 1 in. I.D.
7
x 19- ⁄ 8 in. to 20- ⁄ 16 in. long
1
Connection Dimensions
Inlet/Outlet: ¾ in. (19 mm) FNPT
Vent/Drain: ¼ in. (6.4 mm) FNPT
Cartridge Seal Designs
TC: Single-Open-End with 222 O-ring
receptacle
DO: Double-Open-End with knife edge
seal; also accepts 213 O-ring seal
cartridge (PR code)

Ordering Information
– – –

Vessel Type Shell Length Cartridge Seal Design Vent/Drain Options Head-to-Shell 240 O-Ring
NP CODE INCHES CODE DESCRIPTION CODE DESCRIPTION CODE DESCRIPTION
10 10˝ Double-Open-End ¼ Female NPT Drain E EPDM (FDA grade)
DO DV
20 20˝ (gasket seal) (plugged) L FEP/silicone (FDA grade)
Single-Open-End No Vent, Drain or
TC N N Buna-N (FDA grade)
(222 O-ring) Pressure Relief Button
S Silicone (FDA grade)
V Viton ® (Industrial grade)

Specifi cations are subject to change without notifi cation. © 2010 Parker-Hannifi n Corporation
For User Responsibility Statement, see www.parker.com/safety domnick hunter Process Filtration - North America
All Rights Reserved
Fulfl o is a registered trademark of Parker-Hannifi n Corporation
Viton is a registered trademark of E.I. DuPont de Nemours & Co., Inc.
DS_IP_NP Vessel Rev. A
