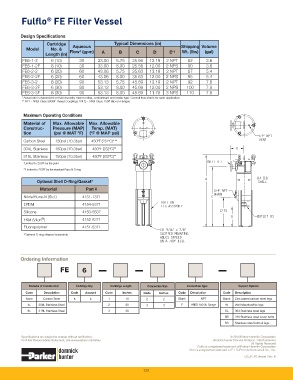

Fulfl o FE Filter Vessel

Design Specifi cations
Cartridge Typical Dimensions (in)
Model No. & Aqueous Shipping Volume
†
Flow (gpm) A B C D E †† Wt. (lbs) (gal)
Length (in)
FE6-1-2 6 (10) 30 33.00 5.75 25.56 13.19 2 NPT 82 3.6
FE6-1-2F 6 (10) 30 33.00 8.00 25.56 12.00 2 NPS 90 3.6
FE6-2-2 6 (20) 60 43.06 5.75 35.63 13.19 2 NPT 87 5.4
FE6-2-2F 6 (20) 60 43.06 8.00 35.63 12.00 2 NPS 95 5.4
FE6-3-2 6 (30) 90 53.13 5.75 45.69 13.19 2 NPT 92 7.8
FE6-3-2F 6 (30) 90 53.13 8.00 45.69 12.00 2 NPS 100 7.8
FE6-3-3F 6 (30) 90 53.13 8.00 45.69 11.75 3 NPS 110 7.8
† Actual rate is dependent on fl uid viscosity, micron rating, contaminant and media type. Consult fl ow charts for each application.
† † NPT - ANSI Class 3000# Thread Couplings / NPS - ANSI Class 150# Slip-on Flanges

Maximum Operating Conditions
Material of Max. Allowable Max. Allowable
Construc- Pressure (MAP) Temp. (MAT)
tion (psi @ MAT ºF) (ºF @ MAP psi)
Carbon Steel 150psi (10.3bar) 450ºF (232ºC)* **
304L Stainless 150psi (10.3bar) 450ºF (232ºC)**
316L Stainless 150psi (10.3bar) 450ºF (232ºC)**
*Limited to 250ºF by the paint
**Limited to 250ºF by the standard Buna-N O-ring

Optional Shell O-Ring/Gasket*
Material Part #
Nitrile/Buna-N (Std.) 4151-1371
EPDM 4154-5371
Silicone 4150-5537
®
FKM (Viton ) 4152-8371
Fluoropolymer 4151-5371
*Optional O-ring shipped separately

Ordering Information
FE 6 — — —

Material of Construction Cartridge Qty. Cartridge Length Connection Size Connection Type Support Options
Code Description Code Amount Code Inches Code Inches Code Description Code Description
None Carbon Steel 6 6 1 10 2 2 Blank NPT Blank Zinc plated carbon steel legs
4L 304L Stainless Steel 2 20 3 3 F ANSI 150 lb. fl ange W Wall Mounted/No legs
6L 316L Stainless Steel 3 30 SL 304 Stainless steel legs
SB 316 Stainless steel cover bolts
SS Stainless steel bolts & legs

Specifi cations are subject to change without notifi cation. © 2010 Parker-Hannifi n Corporation
For User Responsibility Statement, see www.parker.com/safety domnick hunter Process Filtration - North America
All Rights Reserved
Fulfl o is a registered trademark of Parker-Hannifi n Corporation
Viton is a registered trademark of E.I. DuPont de Nemours & Co., Inc.
DS_IP_FE Vessel Rev. B
