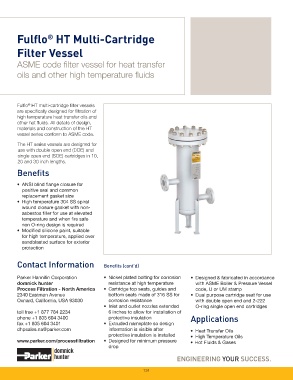

Page 134 - Parker - Process filtration

®
Fulfl o HT Multi-Cartridge

Filter Vessel

ASME code fi lter vessel for heat transfer

oils and other high temperature fl uids

®
Fulfl o HT multi-cartridge fi lter vessels
are specifi cally designed for fi ltration of
high temperature heat transfer oils and
other hot fl uids. All details of design,
materials and construction of the HT
vessel series conform to ASME code.

The HT series vessels are designed for
use with double open end (DOE) and
single open end (SOE) cartridges in 10,
20 and 30 inch lengths.
Benefi ts

• ANSI blind fl ange closure for
positive seal and common
replacement gasket size
• High temperature 304 SS spiral
wound closure gasket with non-
asbestos fi ller for use at elevated
temperature and when fi re safe
non O-ring design is required
• Modifi ed silicone paint, suitable
for high temperature, applied over
sandblasted surface for exterior
protection

Contact Information Benefi ts (cont'd)

Parker Hannifi n Corporation • Nickel plated bolting for corrosion • Designed & fabricated in accordance
domnick hunter resistance at high temperature with ASME Boiler & Pressure Vessel
Process Filtration - North America • Cartridge top seats, guides and code, U or UM stamp
2340 Eastman Avenue bottom seats made of 316 SS for • Dual purpose cartridge seat for use
Oxnard, California, USA 93030 corrosion resistance with double open end and 2-222
• Inlet and outlet nozzles extended O-ring single open end cartridges
toll free +1 877 784 2234 6 inches to allow for installation of
phone +1 805 604 3400 protective insulation Applications
fax +1 805 604 3401 • Extruded nameplate so design
dhpsales.na@parker.com information is visible after • Heat Transfer Oils
protective insulation is installed • High Temperature Oils
www.parker.com/processfi ltration • Designed for minimum pressure • Hot Fluids & Gases
drop
