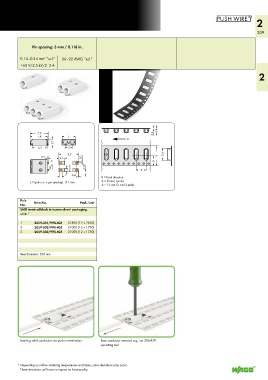

Page 211 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

$

SMD Terminal Blocks, 0.34 mm 2 2

209

Pin spacing: 3 mm / 0.118 in.

0.14–0.34 mm “sol.” 26–22 AWG “sol.”
2
160 V/2.5 kV/2 3 A
2

< 3,4 <
<__ 7,9 __> 0,3 ___> >
<__ 7,4 __> < <_ L _> R
2,7
<_ 6,5 _> > ( 3 ) __> >
<____ 8,7 ____> 9,8
0,5 16
___> < > 2,5 < 0,3 <___ > <
( 8
> < <__
0,8 __> < 3 ) 0,75 <___
1,4 ( < A >
0,4
> <_ 1 > ___> < > R = Feed direction
L = (pole no. x pin spacing) - 0.1 mm A = 8 mm (1-pole)
A = 12 mm (2- and 3-pole)

Pole Item No. Pack. Unit
No.
SMD terminal block in tape-and-reel packaging,
white *
1 2059-301/998-403 31800 (12 x 2650)
2 2059-302/998-403 21000 (12 x 1750)
3 2059-303/998-403 21000 (12 x 1750)

Reel diameter: 330 mm

Inserting solid conductors via push-in termination. Easy conductor removal, e.g., via 206-859
operating tool.

* Depending on reflow soldering temperatures and times, color deviations may occur.
These deviations will have no impact on functionality.
