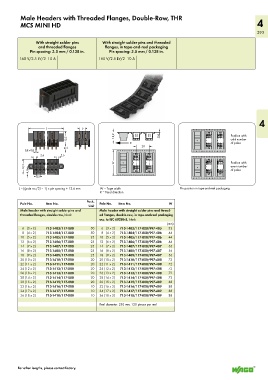

Male Headers with Threaded Flanges, Double-Row, THR
MCS MINI HD 4
293

With straight solder pins With straight solder pins and threaded
and threaded flanges flanges, in tape-and-reel packaging
Pin spacing: 3.5 mm / 0.138 in. Pin spacing: 3.5 mm / 0.138 in.

160 V/2.5 kV/2 10 A 160 V/2.5 kV/2 10 A

4

< <
18,2 0,6 __> Position with
odd number
> R of poles
2,4 > 28 <
______> Position with
2,6 2,6
<______ W even number
of poles

L = [(pole no./2) – 1] x pin spacing + 13.6 mm W = Tape width Pin position in tape-and-reel packaging
R = Feed direction
Pack.
Pole No. Item No. Pole No. Item No. W
Unit
Male header with straight solder pins and Male header with straight solder pins and thread-
threaded flanges, double-row, black ed flanges, double-row, in tape-and-reel packaging
acc. to IEC 60286-3, black
(mm)
6 (3 x 2) 713-1403/117-000 50 6 (3 x 2) 713-1403/117-000/997-405 32
8 (4 x 2) 713-1404/117-000 50 8 (4 x 2) 713-1404/117-000/997-406 44
10 (5 x 2) 713-1405/117-000 25 10 (5 x 2) 713-1405/117-000/997-406 44
12 (6 x 2) 713-1406/117-000 25 12 (6 x 2) 713-1406/117-000/997-406 44
14 (7 x 2) 713-1407/117-000 25 14 (7 x 2) 713-1407/117-000/997-407 56
16 (8 x 2) 713-1408/117-000 25 16 (8 x 2) 713-1408/117-000/997-407 56
18 (9 x 2) 713-1409/117-000 25 18 (9 x 2) 713-1409/117-000/997-407 56
20 (10 x 2) 713-1410/117-000 20 20 (10 x 2) 713-1410/117-000/997-408 72
22 (11 x 2) 713-1411/117-000 20 22 (11 x 2) 713-1411/117-000/997-408 72
24 (12 x 2) 713-1412/117-000 20 24 (12 x 2) 713-1412/117-000/997-408 72
26 (13 x 2) 713-1413/117-000 20 26 (13 x 2) 713-1413/117-000/997-408 72
28 (14 x 2) 713-1414/117-000 20 28 (14 x 2) 713-1414/117-000/997-408 72
30 (15 x 2) 713-1415/117-000 20 30 (15 x 2) 713-1415/117-000/997-409 88
32 (16 x 2) 713-1416/117-000 10 32 (16 x 2) 713-1416/117-000/997-409 88
34 (17 x 2) 713-1417/117-000 10 34 (17 x 2) 713-1417/117-000/997-409 88
36 (18 x 2) 713-1418/117-000 10 36 (18 x 2) 713-1418/117-000/997-409 88

Reel diameter: 330 mm, 120 pieces per reel

For other lengths, please contact factory.
For other lengths, please contact factory.
