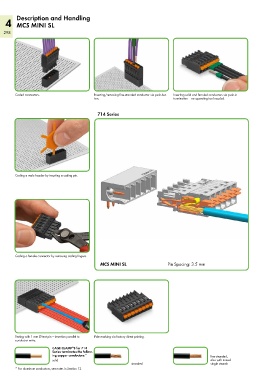

Description and Handling
4 MCS MINI SL
298
Coded connectors. Inserting/removing fine-stranded conductor via push-but- Inserting solid and ferruled conductors via push-in
ton. termination — no operating tool needed.
714 Series
Coding a male header by inserting a coding pin.
Coding a female connector by removing coding fingers.
MCS MINI SL Pin Spacing: 3.5 mm
Testing with 1 mm Ø test pin — insertion parallel to Pole marking via factory direct printing.
conductor entry.
CAGE CLAMP S for 714
®
Series terminates the follow-
ing copper conductors:* fine-stranded,
solid also with tinned
stranded single strands
* For aluminum conductors, see notes in Section 13.
