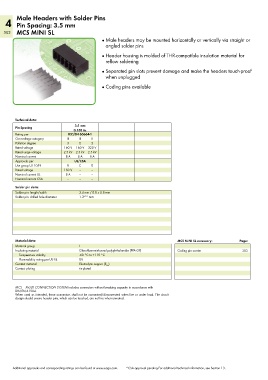

Page 304 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Male Headers with Solder Pins
4 Pin Spacing: 3.5 mm
302 MCS MINI SL
● Male headers may be mounted horizontally or vertically via straight or
angled solder pins
● Header housing is molded of THR-compatible insulation material for
reflow soldering

● Separated pin slots prevent damage and make the headers touch-proof
when unplugged

● Coding pins available

Technical data:

Pin Spacing 3.5 mm
0.138 in.
Rating per IEC/EN 60664-1
Overvoltage category III III II
Pollution degree 3 2 2
Rated voltage 160 V 160 V 320 V
Rated surge voltage 2.5 kV 2.5 kV 2.5 kV
Nominal current 8 A 8 A 8 A
Approvals per UL/CSA
Use group UL 1059 B C D
Rated voltage 150 V – –
Nominal current UL 8 A – –
Nominal current CSA – – –
Solder pin data:
Solder pin: length/width 3.4 mm / 0.8 x 0.8 mm
Solder pin: drilled hole diameter 1.2 +0.1 mm

Material data: MCS MINI SL accessory: Page:
Material group I
Insulating material Glass-fiber-reinforced polyphthalamide (PPA-GF) Coding pin carrier 303
Temperature stability -60 °C to +115 °C
Flammability rating per UL 94 0V
Contact material Electrolytic copper (E )
Cu
Contact plating tin-plated

MCS — MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with
DIN EN 61984.
When used as intended, these connectors shall not be connected/disconnected when live or under load. The circuit
design should ensure header pins, which can be touched, are not live when unmated.

Additional approvals and corresponding ratings can be found at www.wago.com. *CSA approval pending For additional technical information, see Section 13.
