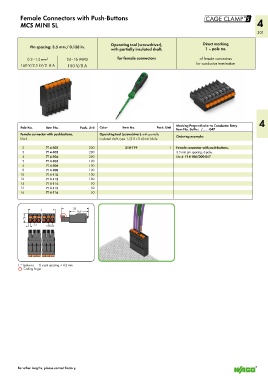

Page 303 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

!

Female Connectors with Push-Buttons
MCS MINI SL 4
301

Operating tool (screwdriver), Direct marking
Pin spacing: 3.5 mm / 0.138 in. with partially insulated shaft, 1 – pole no.

0.2–1.5 mm 2 24–16 AWG for female connectors of female connectors
160 V/2.5 kV/2 8 A 150 V/8 A for conductor termination

4

Pole No. Item No. Pack. Unit Color Item No. Pack. Unit Marking Perpendicular to Conductor Entry
Item No. Suffix: /. . . - 047
Female connector with push-buttons, Operating tool (screwdriver), with partially Ordering example:
black insulated shaft, type 1, (2.5 x 0.4) mm blade
2 714-102 200 210-719 1 Female connector with push-buttons,
3 714-103 200 3.5 mm pin spacing, 6-pole,
4 714-104 200 black: 714-106/000-047
5 714-105 100
6 714-106 100
8 714-108 100
10 714-110 100
12 714-112 100
14 714-114 50
15 714-115 50
16 714-116 50

<________ L ________> <_______ 23 ________>
<___ 16,5 ___>
7,8 >
<
2,1
> <___ > 3,5 >

L = (pole no. – 1) x pin spacing + 4.2 mm
Coding finger

For other lengths, please contact factory.
