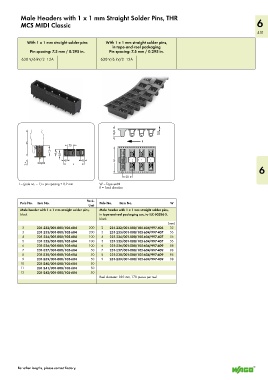

Page 453 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Male Headers with 1 x 1 mm Straight Solder Pins, THR
MCS MIDI Classic 6
451

With 1 x 1 mm straight solder pins With 1 x 1 mm straight solder pins,
in tape-and-reel packaging
Pin spacing: 7.5 mm / 0.295 in. Pin spacing: 7.5 mm / 0.295 in.

630 V/6 kV/2 12A 630 V/6 kV/2 12A

<________30________> <_ 12_> (8,4) < 7,5 16,8 _______> R 0,6

2,4 __> > 3,8< >3,8 4,1 4,1 ______ W
<_____ L _____>
<_ 6
20
L = (pole no. – 1) x pin spacing + 8.2 mm W = Tape width
R = Feed direction

Pack.
Pole No. Item No. Pole No. Item No. W
Unit
Male header with 1 x 1 mm straight solder pins, Male header with 1 x 1 mm straight solder pins,
black in tape-and-reel packaging acc. to IEC 60286-3,
black
(mm)
2 231-232/001-000/105-604 200 2 231-232/001-000/105-604/997-405 32
3 231-233/001-000/105-604 200 3 231-233/001-000/105-604/997-407 56
4 231-234/001-000/105-604 100 4 231-234/001-000/105-604/997-407 56
5 231-235/001-000/105-604 100 5 231-235/001-000/105-604/997-407 56
6 231-236/001-000/105-604 100 6 231-236/001-000/105-604/997-409 88
7 231-237/001-000/105-604 50 7 231-237/001-000/105-604/997-409 88
8 231-238/001-000/105-604 50 8 231-238/001-000/105-604/997-409 88
9 231-239/001-000/105-604 50 9 231-239/001-000/105-604/997-409 88
10 231-240/001-000/105-604 50
11 231-241/001-000/105-604 50
12 231-242/001-000/105-604 50
Reel diameter: 330 mm, 170 pieces per reel

For other lengths, please contact factory.
