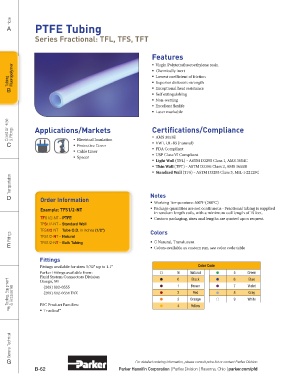

Page 174 - Parker - Cat 4660

Hose
A PTFE Tubing

Series Fractional: TFL, TFS, TFT

Features

ƒ Virgin Polytetrafluoroethylene resin

ƒ Lowest coefficient of friction
Tubing Fluoropolymer ƒ Chemically inert
ƒ Superior dielectric strength
B ƒ Exceptional heat resistance
ƒ Self extinguishing
ƒ Non-wetting
ƒ Excellent flexlife
ƒ Laser markable
Coiled Air Hose & Fittings Applications/Markets Certifications/Compliance

ƒ VW1, UL-83 (natural)
C ƒ Electrical Insulation ƒ AMS 3653E
ƒ Protective Cover
ƒ Cable Liner ƒ FDA Compliant
ƒ Spacer ƒ USP Class VI Compliant
ƒ Light Wall (TFL) – ASTM D3295 Class 1, AMS 3654C
ƒ Thin Wall (TFT) – ASTM D3295 Class 2, AMS 3655B
ƒ Standard Wall (TFS) – ASTM D3295 Class 3, MIL-I-22129C
Transportation

D Order Information Notes
ƒ Working Temperature: 500°F (260°C)
Example: TFS1/2-NT ƒ Package quantities are not continuous - Fractional tubing is supplied
in random length coils, with a minimum coil length of 15 feet.
TFS1/2-NT – PTFE ƒ Custom packaging, sizes and lengths are quoted upon request.
TFS1/2-NT – Standard Wall
TFS1/2-NT – Tube O.D. in inches (1/2") Colors
Fittings TFS1/2-NT – Natural
Natural, Translucent
E TFS1/2-NT – Bulk Tubing ƒ ƒ Colors available as custom run, see color code table

Fittings
Fittings available for sizes 3/32" up to 1.1" Color Code
Parker Fittings available from: N Natural 5 Green
Fluid System Connectors Division 0 Black 6 Blue
Tooling, Equipment & Accessories (269) 692-6555 1 2 3 Orange 7 8 9 Violet
Otsego, MI
Brown
Red
Gray
(269) 692-6634 FAX
White
F FSC Product Families: 4 Yellow
ƒ TrueSeal™

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
B-62 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
