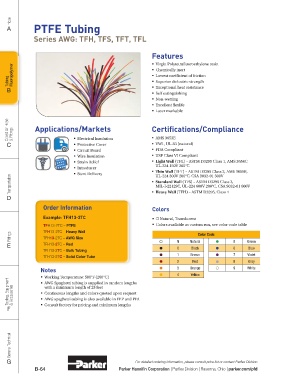

Page 176 - Parker - Cat 4660

Hose
A PTFE Tubing

Series AWG: TFH, TFS, TFT, TFL

Features

ƒ Virgin Polytetrafluoroethylene resin
ƒ Chemically inert
Tubing Fluoropolymer ƒ Lowest coefficient of friction
ƒ Superior dielectric strength
B ƒ Exceptional heat resistance
ƒ Self extinguishing
ƒ Non-wetting
ƒ Excellent flexlife
ƒ Laser markable
Coiled Air Hose & Fittings Applications/Markets Certifications/Compliance

ƒ VW1, UL-83 (natural)
C ƒ Electrical Insulation ƒ AMS 3653E
ƒ Protective Cover
ƒ Circuit Board ƒ FDA Compliant
ƒ Wire Insulation ƒ USP Class VI Compliant
ƒ Strain Relief ƒ Light Wall (TFL) – ASTM D3295 Class 1, AMS 3654C
ƒ Introducer UL-224 150V 200°C
ƒ Stent Delivery ƒ Thin Wall (TFT) – ASTM D3295 Class 2, AMS 3655B,
UL-224 300V 200°C, CSA 9032-01 300V
Transportation ƒ Standard Wall (TFS) – ASTM D3295 Class 3,
MIL-I-22129C, UL-224 600V 200°C, CSA 9032-01 600V

D ƒ Heavy Wall (TFH) – ASTM D3295, Class 4
Order Information Colors

Example: TFH13-2TC ƒ Natural, Translucent
TFH13-2TC – PTFE ƒ Colors available as custom run, see color code table
TFH13-2TC – Heavy Wall
Fittings TFH13-2TC – AWG Size Color Code
E TFH13-2TC – Red N 0 Natural 5 6 Green
Black
Blue
TFH13-2TC – Bulk Tubing
TFH13-2TC – Solid Color Tube 1 Brown 7 Violet
2 Red 8 Gray
Notes 3 Orange 9 White
4 Yellow
ƒ Working Temperature: 500°F (260°C)
Tooling, Equipment & Accessories ƒ Continuous lengths and colors quoted upon request
ƒ AWG Spaghetti tubing is supplied in random lengths
with a minimum length of 25 feet
ƒ AWG spaghetti tubing is also available in FEP and PFA

F ƒ Consult factory for pricing and minimum lengths

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
