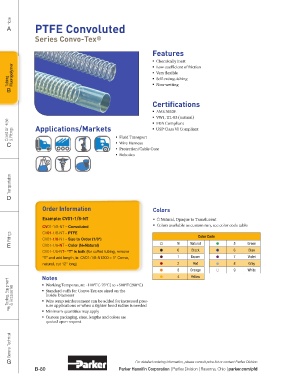

Page 192 - Parker - Cat 4660

Hose
A PTFE Convoluted

Series Convo-Tex ®

Features

ƒ Chemically inert
ƒ Low coefficient of friction
Tubing Fluoropolymer ƒ Very flexible
ƒ Self extinguishing
ƒ Non-wetting
B

Certifications
ƒ AMS 3653E
ƒ VW1, UL-83 (natural)
Coiled Air Hose & Fittings Applications/Markets ƒ USP Class VI Compliant
ƒ FDA Compliant

ƒ Wire Harness
C ƒ Fluid Transport
ƒ Protection/Cable Core
ƒ Robotics

Transportation

D

Order Information Colors

Example: CV01-1/8-NT ƒ Natural, Opaque to Translucent
CV01-1/8-NT – Convoluted ƒ Colors available as custom run, see color code table

Fittings CV01-1/8-NT – PTFE Color Code
CV01-1/8-NT – Size to Order (1/8")
E CV01-1/8-NT – Color (N=Natural) N Natural 5 Green
CV01-1/8-NT– “T” is bulk (for cuffed tubing, remove 0 Black 6 Blue
“T” and add length, ie. CV01-1/8-N1200 = 1" Convo, 1 Brown 7 Violet
natural, cut 12" long) 2 Red 8 Gray
3 Orange 9 White
Notes 4 Yellow
Tooling, Equipment & Accessories ƒ Working Temperature: -100°F (-75°C) to +500°F (260°C)

ƒ Standard cuffs for Convo-Tex are sized on the
Inside Diameter
ƒ Wire wrap reinforcement can be added for increased pres-
sure applications or when a tighter bend radius is needed
F ƒ Minimum quantities may apply
ƒ Custom packaging, sizes, lengths and colors are
quoted upon request

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
B-80 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
