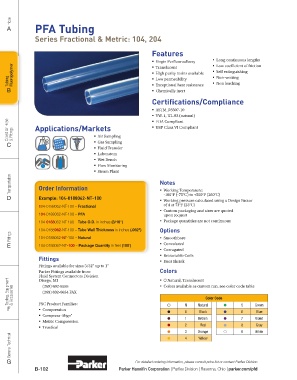

Page 214 - Parker - Cat 4660

Hose
A PFA Tubing

Series Fractional & Metric: 104, 204

Features

ƒ Virgin Perfluoroalkoxy ƒ Long continuous lengths
ƒ Low coefficient of friction
ƒ Translucent
Tubing Fluoropolymer ƒ High purity resins available ƒ Self extinguishing
ƒ Non-wetting
ƒ Low permeability
ƒ Non leaching
ƒ Exceptional heat resistance
B ƒ Chemically inert
Certifications/Compliance

ƒ ASTM D3307-10
ƒ VW-1, UL-83 (natural)
Coiled Air Hose & Fittings Applications/Markets ƒ USP Class VI Compliant
ƒ FDA Compliant

ƒ Air Sampling
C ƒ Gas Sampling
ƒ Fluid Transfer
ƒ Laboratory
ƒ Wet Bench
ƒ Flow Monitoring
ƒ Steam Plant
Transportation Order Information Notes

ƒ Working Temperature:
-100°F (-75°C) to +500°F (260°C)
D Example: 104-0188062-NT-100 ƒ Working pressure calculated using a Design Factor
104-0188062-NT-100 – Fractional of 4 at 73°F (23°C)
ƒ Custom packaging and sizes are quoted
104-0188062-NT-100 – PFA upon request
104-0188062-NT-100 – Tube O.D. in inches (3/16") ƒ Package quantities are not continuous
104-0188062-NT-100 – Tube Wall Thickness in inches (.062") Options
Fittings 104-0188062-NT-100 – Natural ƒ Smoothbore
E 104-0188062-NT-100 – Package Quantity in feet (100') ƒ Convoluted
ƒ Corrugated
Fittings ƒ Retractable Coils
ƒ Heat Shrink
Fittings available for sizes 3/32" up to 1"
Parker Fittings available from: Colors
Fluid System Connectors Division ƒ Natural, Translucent
Tooling, Equipment & Accessories (269) 692-6555 ƒ Colors available as custom run, see color code table
Otsego, MI

(269) 692-6634 FAX
Color Code

F FSC Product Families: N 0 Natural 5 6 Green
ƒ Compression
Blue
Black
ƒ Compress-Align® 1 Brown 7 Violet
ƒ Metric Compression
ƒ TrueSeal 2 Red 8 Gray
3 4 Orange 9 White
General Technical
Yellow

G For detailed ordering information, please consult price list or contact Parflex Division.
B-102 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
