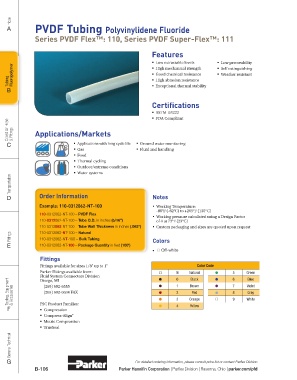

Page 218 - Parker - Cat 4660

Hose
A PVDF Tubing Polyvinylidene Fluoride

Series PVDF Flex™: 110, Series PVDF Super-Flex™: 111

Features

ƒ Low extractable levels ƒ Low permeability
ƒ High mechanical strength
ƒ Self extinguishing
Tubing Fluoropolymer ƒ Good chemical resistance ƒ Weather resistant
ƒ High abrasion resistance
B ƒ Exceptional thermal stability

Certifications
ƒ ASTM D3222
ƒ FDA Compliant
Coiled Air Hose & Fittings Applications/Markets

C ƒ Applications with long cycle life ƒ Ground water monitoring
ƒ Gas ƒ Fluid and handling
ƒ Food
ƒ Thermal cycling
ƒ Outdoor/extreme conditions
ƒ Water systems
Transportation

D Order Information Notes
Example: 110-0312062-NT-100 ƒ Working Temperature:
-80°F (-62°C) to +265°F (130°C)
110-0312062-NT-100 – PVDF Flex
ƒ Working pressure calculated using a Design Factor
110-0312062-NT-100 – Tube O.D. in inches (5/16") of 4 at 73°F (23°C)
110-0312062-NT-100 – Tube Wall Thickness in inches (.062") ƒ Custom packaging and sizes are quoted upon request
Fittings 110-0312062-NT-100 – Natural Colors
110-0312062-NT-100 – Bulk Tubing
E 110-0312062-NT-100 – Package Quantity in feet (100')
• Off-white
Fittings
Fittings available for sizes 1/8" up to 1" Color Code
Parker Fittings available from: N Natural 5 Green
Fluid System Connectors Division 0 Black 6 Blue
Tooling, Equipment & Accessories (269) 692-6555 1 2 3 Orange 7 8 9 Violet
Otsego, MI
Brown
(269) 692-6634 FAX
Red
Gray
White
F FSC Product Families: 4 Yellow
ƒ Compression
ƒ Compress-Align®
ƒ Metric Compression
ƒ TrueSeal
General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
B-106 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
